MacDon R113 - Page 181

215585 173 Revision A

$

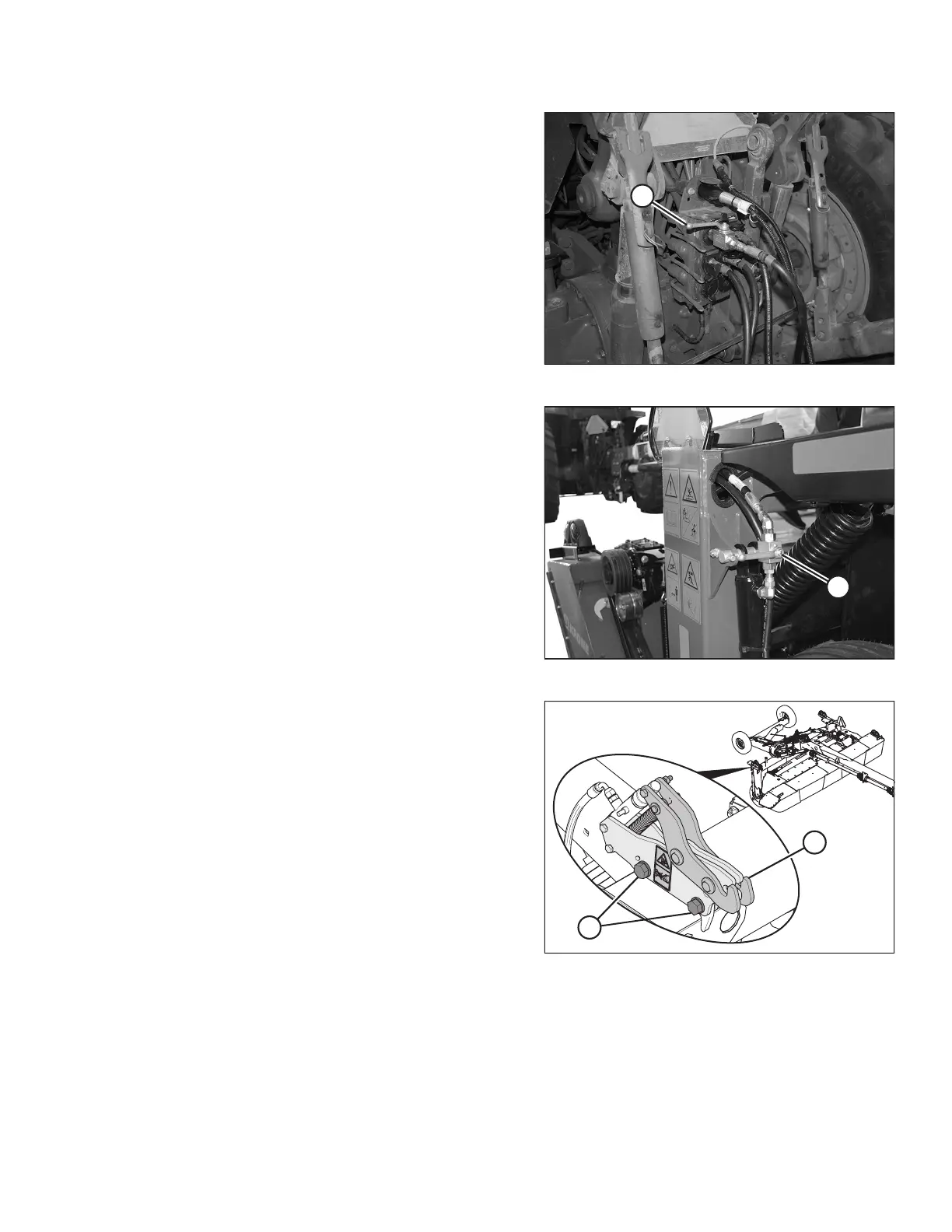

Figure 9.21: Steering Lock-Out Valve
Steering lock-out: Close the valve by turning handle (A) to
the closed position (90° to the hose).

$
Figure 9.22: Lift Cylinder Lock-Out Valve
Lift cylinder lock-out: Close the valve by turning handle (A)
to the closed position (90° to the hose). Repeat on
opposite side.

%
$
Figure 9.23: Transport Latch
12. Torque bolts (B) on transport latch (A) to 460 Nm
(340 lbf·ft).
NOTE:
This step only needs to be completed the first time the
machine is converted from field to transport.
TRANSPORTING THE ROTARY DISC PULL-TYPE
