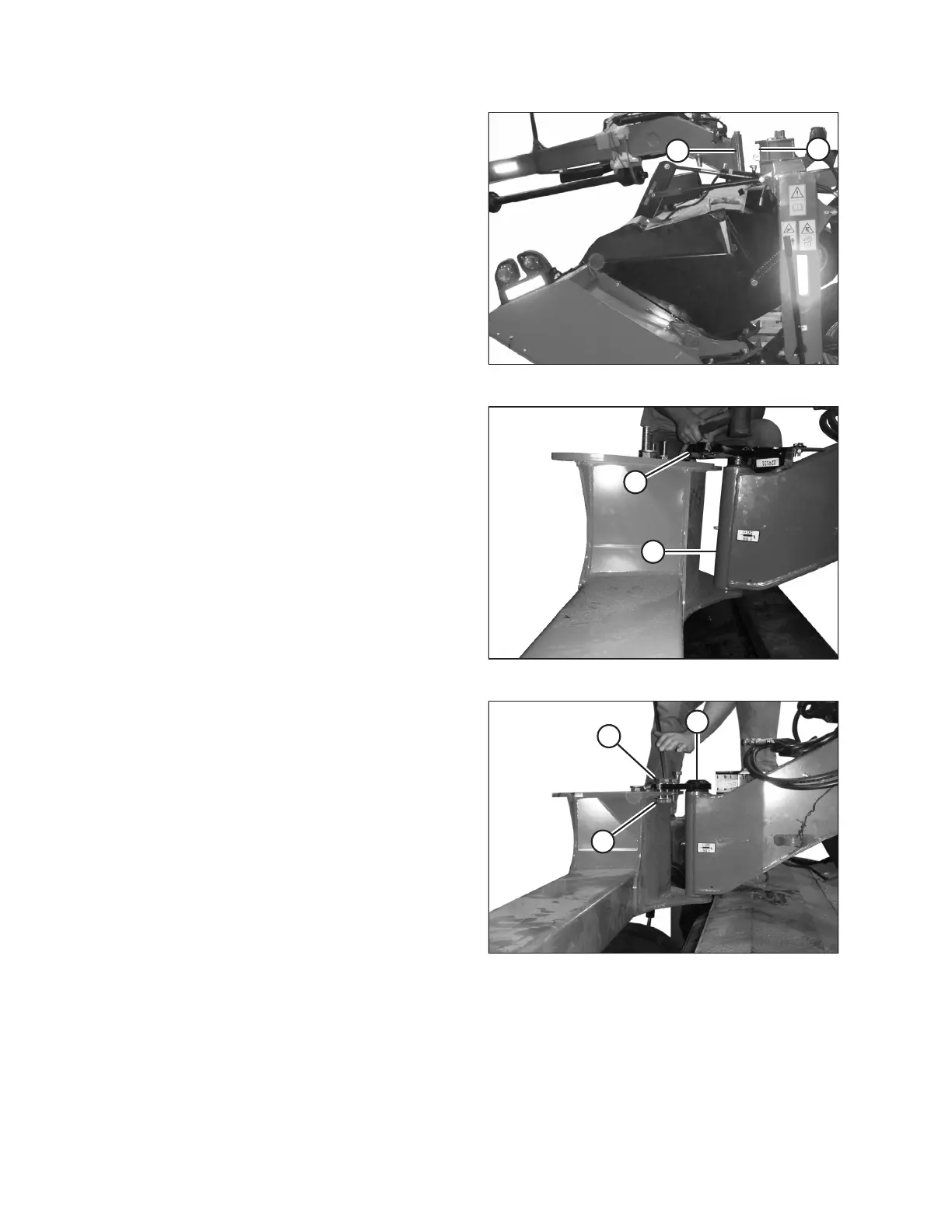

Figure 3.15: Hitch to Carrier Frame
9. Move hitch pivot (A) into attachment location (B) on carrier
frame, and line up hitch pin with hole in carrier frame.
$
%
Figure 3.16: Hitch Pin
10. Slowly lower hitch (A) while maintaining pin alignment until
hitch pin (B) is fully inserted. Use a large soft hammer if
necessary to seat hitch pin.
$
%
&
Figure 3.17: Hitch Pin
11. Line up holes in hitch pin (A) with holes in the carrier
frame. Install six M20 x 65 bolts (B) with hardened washers
under bolt head and lock nuts (C).
ASSEMBLING THE ROTARY DISC PULL-TYPE – WITH OR WITHOUT THE DEALER-INSTALLED TRANSPORT
