215585 34 Revision A
$
%%

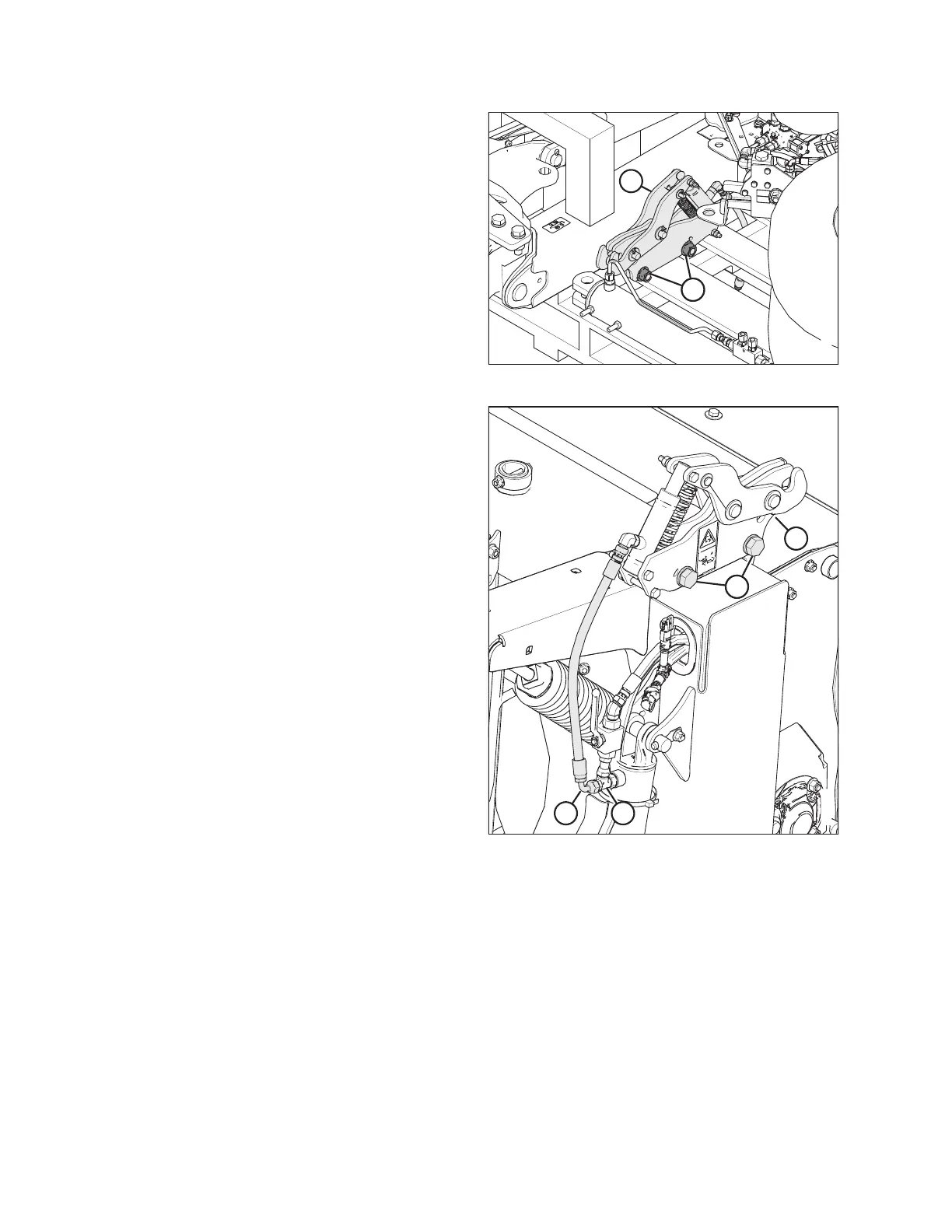

Figure 3.60: Latch Packing
8. On the transport pallet, remove the shipping banding and
packing material from latch assembly (A). Remove the latch
assembly.
9. Remove two M20 mounting bolts, washers, and nuts (B)
from the latch assembly, and retain for use later.
$
%%
&
'
Figure 3.61: Latch Assembly
10. Install latch assembly (A) onto the carrier frame as shown,
and secure with the M20 bolts, washers, and nuts (B)
retained in Step 9, page 34.DoNOT fully tighten bolts;
adjustment of the latch assembly may be necessary.
11. Attach hydraulic hose (C) from the latch assembly to tee
fitting (D) as shown.
ASSEMBLING THE ROTARY DISC PULL-TYPE – WITH OR WITHOUT THE DEALER-INSTALLED TRANSPORT
