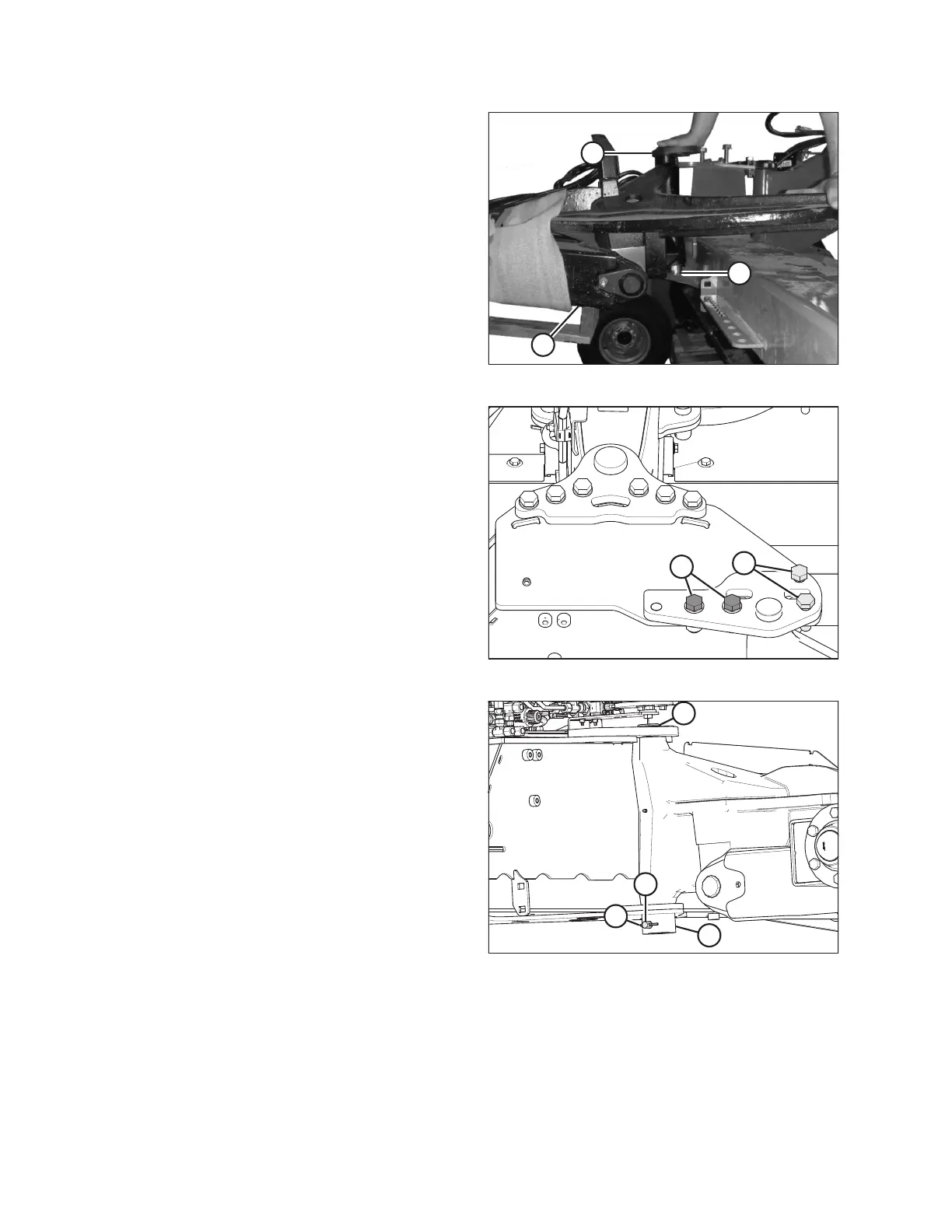

Figure 3.65: Transport System
4. Using a forklift, pick up the pallet holding transport
assembly (A) and align it with the rear of the rotary disc
pull-type.
5. Position the assembly close behind the frame and align
pin (B) in transport assembly with hole (C) in the carrier.
Use a soft hammer or equivalent to fully insert pin (B).
$
%
Figure 3.66: Pin Support
6. Install two M20 x 65 bolts (A), hardened washers, and nuts.
7. Temporarily install bolts (B) to help align the assembly.
$
%
&
'
Figure 3.67: Pin Installation
8. Rotate pin (A) until hole in pin aligns with holes in welded
collar (B). Insert pin (C) through the collar and pin.
9. Insert cotter pin (D) and bend over the legs to secure it.
