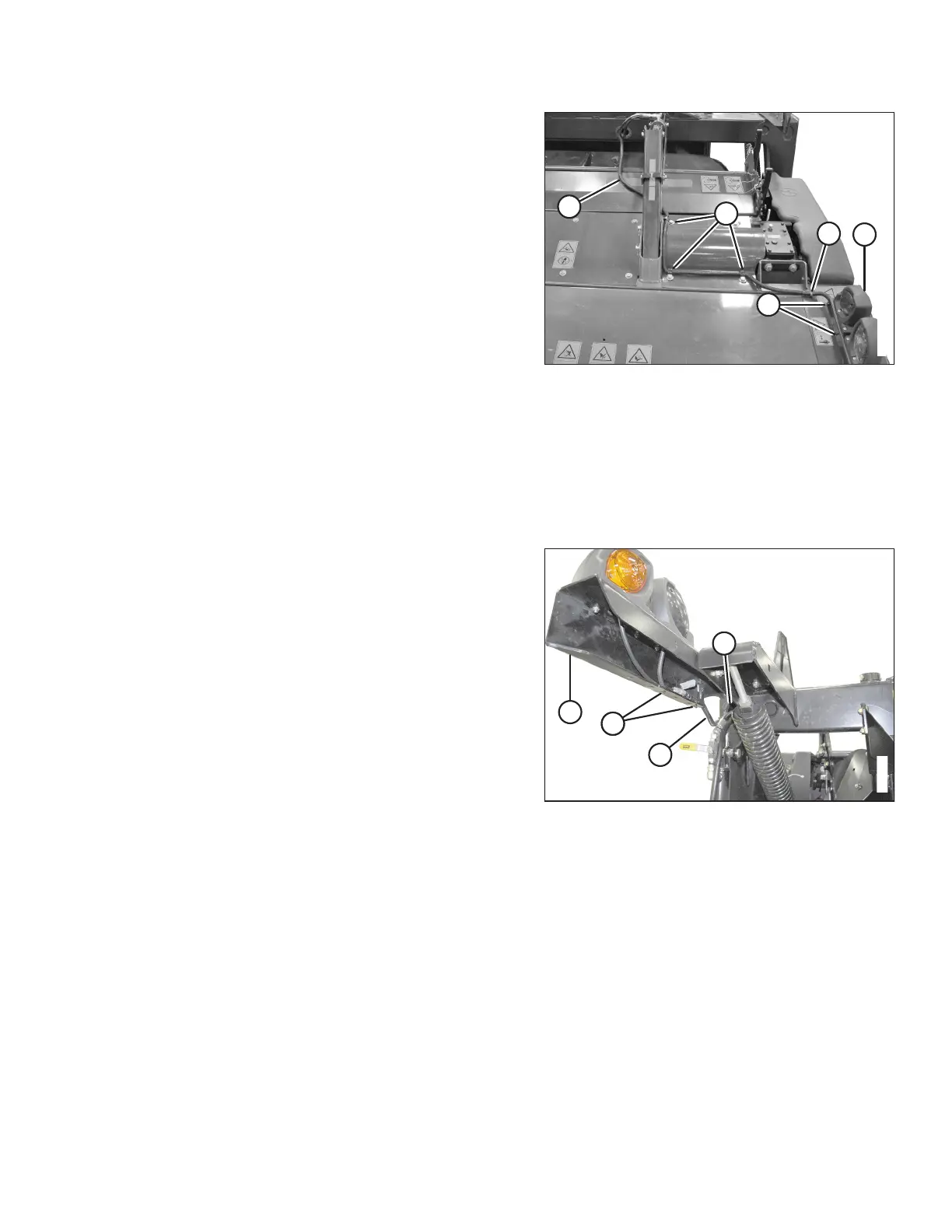

Figure 3.109: Harness Routing – R113 PT Shown,
R116 PT Similar
7. Route harness (A) to light (B) on header as shown.
8. Retrieve P-clips, plastic clamps, and cable ties from the
shipping bag.
9. Remove bolts (C) on header at locations shown.
10. Secure harness (A) with p-clips, existing bolts (C), and
plastic clamp (D) into existing holes.
NOTE:
R113 PT: Harness for rotary disc pull-type is secured with
one plastic clamp (D).
NOTE:
R116 PT: Harness for rotary disc pull-type is secured with
two plastic clamps.
11. Secure harness (A) to the light bracket with two
cable ties (E).
12. Push any excess harness into the carrier frame.
13. Connect plug P401 and P404 into light (B).
Connecting Right Transport Harness

$
&
&
%
'
Figure 3.110: Transport Light
1. Route transport harness (A) from opening (B) into light
bracket (C) and plug it into the light connectors.
2. Secure harness (A) to the light bracket with two cable
ties (D).
3. Push any excess harness into the carrier frame.
