Connecting Selector Valve and Transport Lighting Module
The electronically controlled selector valve manages the hydraulics for the transport system; the lighting module is the hub
for signal and hazard lighting.
$
%

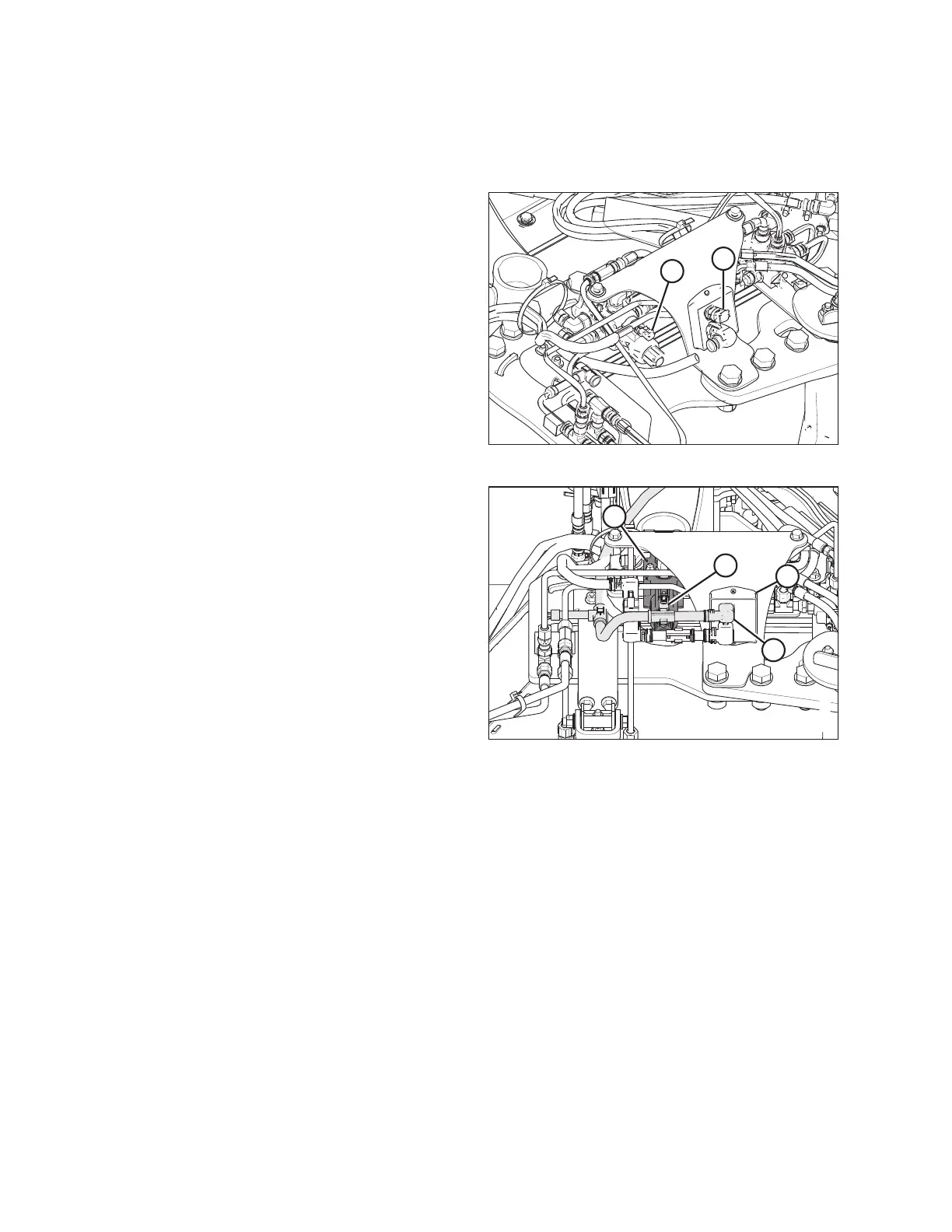

Figure 3.111: Connector Plugs
1. Remove valve connector plug (A) and module connector
plug (B).
$
%
&
'
Figure 3.112: Selector Valve Supply
2. Locate plugs P102 (A) and P502 (B) on the transport
harness at the header end of the hitch. Route plugs
P102 (A) and P502 (B) towards selector valve (C).
3. Connect plug P502 (B) to the receptacle on selector
valve (C).
4. Connect plug P102 (A) to the upper input receptacle on
transport lighting module (D).
