215585 55 Revision A
Installing Remote Control
The remote control allows the operator to convert the pull-type from field to road mode from the within the tractor cab.

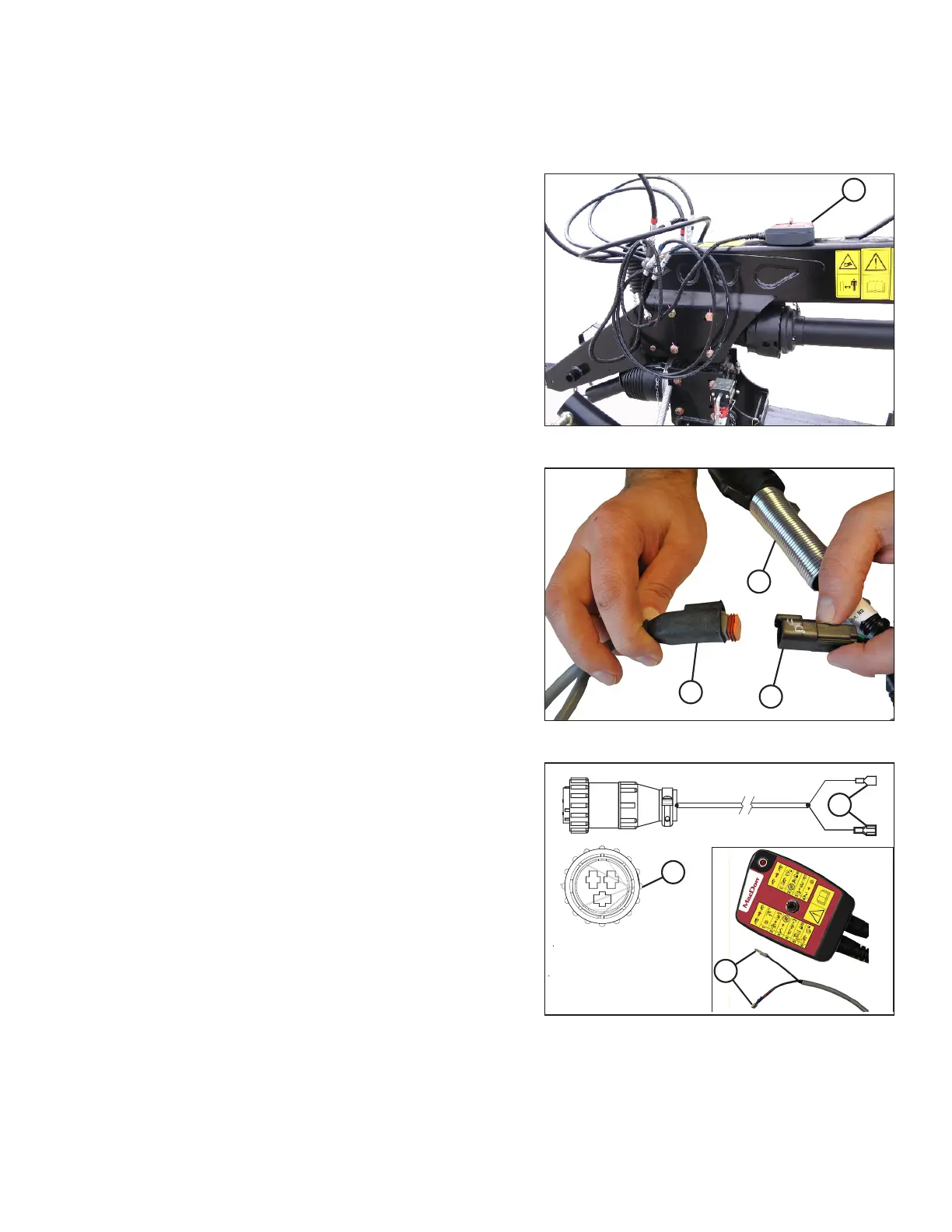

Figure 3.113: Remote Control on Top of Hitch
1. Retrieve remote control (A) with wiring harness.
2. Place remote control (A) on hitch temporarily.
Figure 3.114: Transport Harness
3. Locate connector (C) that branches off seven-pole transport
plug (A) and attach it to remote wiring harness (B).
Figure 3.115: Three-Pin Auxiliary Connector
4. If your tractor has a three-pin auxiliary power connection:
NOTE:
The remote control has internal protection which prevents
damage caused by incorrect wiring, short circuits, or
overload conditions.
Connect two wires (B) from three-pin auxiliary
connector (A) to remote control wires (C) on the remote
control, wrap connections with electrical tape, and proceed
to Step 6, page 57.
• The wire with no tag connects to the tractor ground.
• The wire with the red tag connects to the tractor power.
ASSEMBLING THE ROTARY DISC PULL-TYPE – WITH OR WITHOUT THE DEALER-INSTALLED TRANSPORT
