214880 95 Revision A

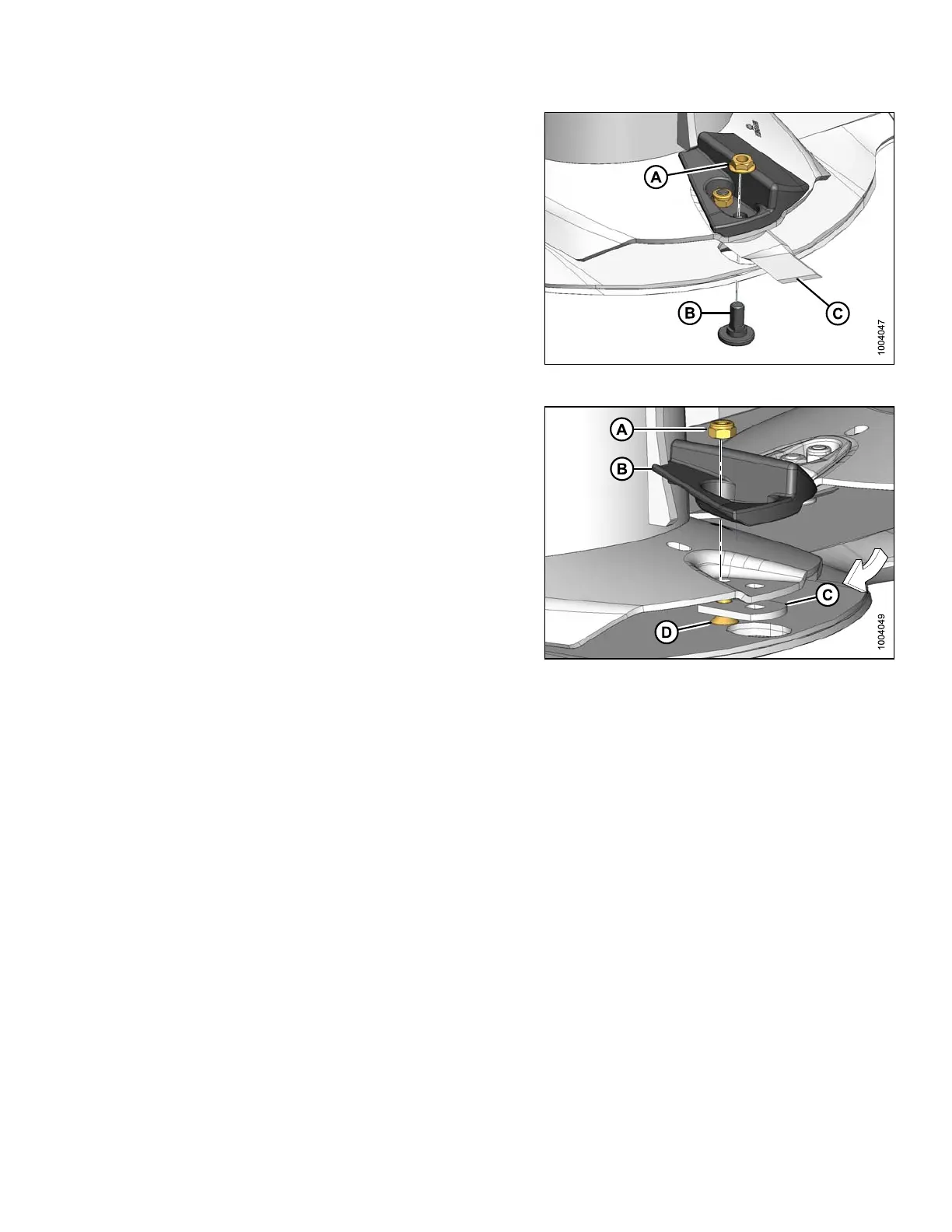

Figure 4.58: Accelerator Removal
5. Place a pin (or equivalent) in the front hole of the rock
guard to prevent disc rotation while loosening bolts.
6. Line up rock guard hole and bolt to be removed.
7. Remove nut (A), flange bolt (B), and discblade (C) from disc.
Discard nut.
Figure 4.59: Accelerator Removal
8. Remove lock nut (A), accelerator (B), blade holder (C), and
hex-socket bolt (D).
9. Repeat the removal procedure for the second accelerator.
10. Remove pin.
MAINTENANCE AND SERVICING
