214880 133 Revision A
4.9 Conditioner
Rolls condition the crop by crimping and crushing the stem in several places, which allows the release of moisture resulting
in faster drying times. R216 SP headers are equipped with steel conditioner rolls.
4.9.1 Inspecting Conditioner
DANGER
To avoid bodily injury or death from unexpected start-up or fall of a raised machine, stop engine, remove key, and
engage windrower lift cylinder safety props before going under machine for any reason.
WARNING
Exercise caution when working around the blades. Blades are sharp and can cause serious injury. Wear gloves when
handling blades.
1. Lower the header fully.
2. Shut down the engine, and remove the key from the ignition.

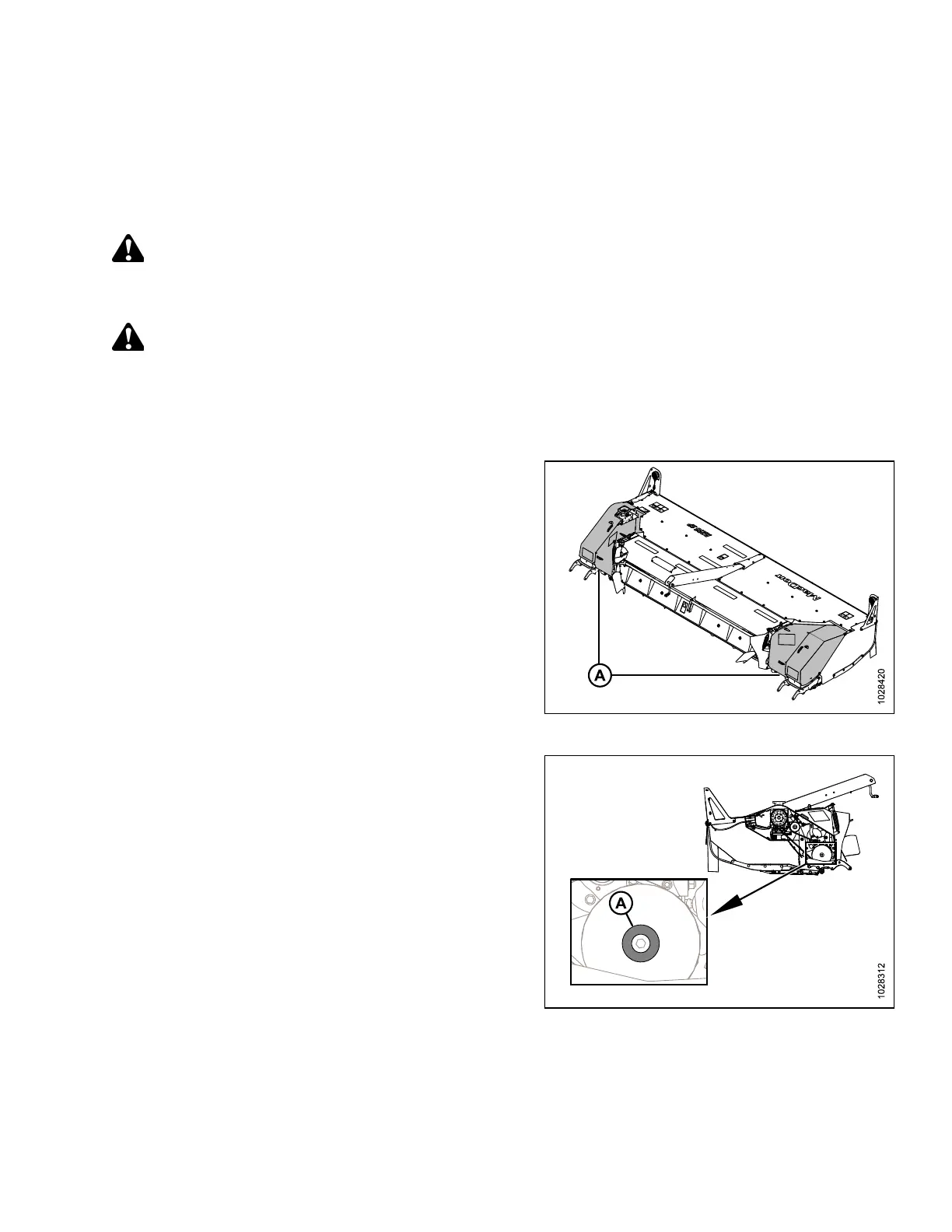

Figure 4.144: Driveshields
3. Open driveshields (A). Refer to 3.6.1 Opening Driveshields,
page 39 .
Figure 4.145: Conditioner Roll Left Bearing
4. Inspect conditioner roll left bearing (A) for signs of wear or
damage. If the bearing needs replacing, contact your
Dealer.
NOTE:
Bearing is located on the inboard side of the pulley.
MAINTENANCE AND SERVICING
