3.7 Cutterbar Curtain
WARNING
To reduce the risk of personal injury or machine damage, do NOT operate the machine without curtain installed and in
good condition. Foreign objects can be ejected with considerable force when the machine is started.

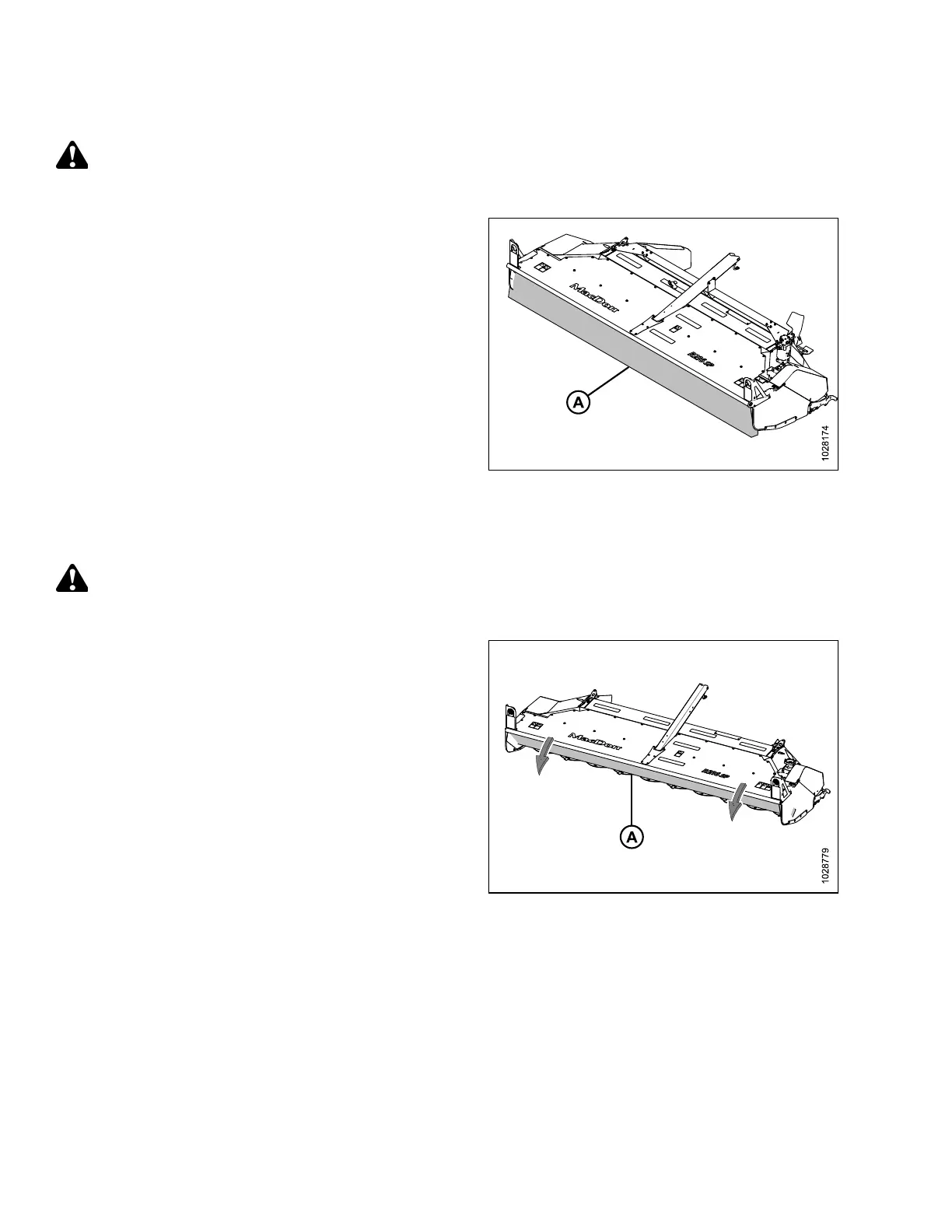

Figure 3.49: Cutterbar Curtains
NOTE:
Cutterbar curtain is attached at the front and the sides of the
header. Always keep curtain lowered when operating the disc
header.
IMPORTANT:
Replace curtain (A) if it becomes worn or damaged. Refer to
4.8.1 Inspecting Cutterbar Curtain, page 130.
3.7.1 Opening Cutterbar Curtain
WARNING
To avoid bodily injury or death from unexpected startup of machine, always stop engine and remove key from ignition
before leaving operator’s seat for any reason.
Figure 3.50: Cutterbar Curtain
1. Push curtain (A) inward and up.
OPERATION
To Next Page
