2.2 Component Identification

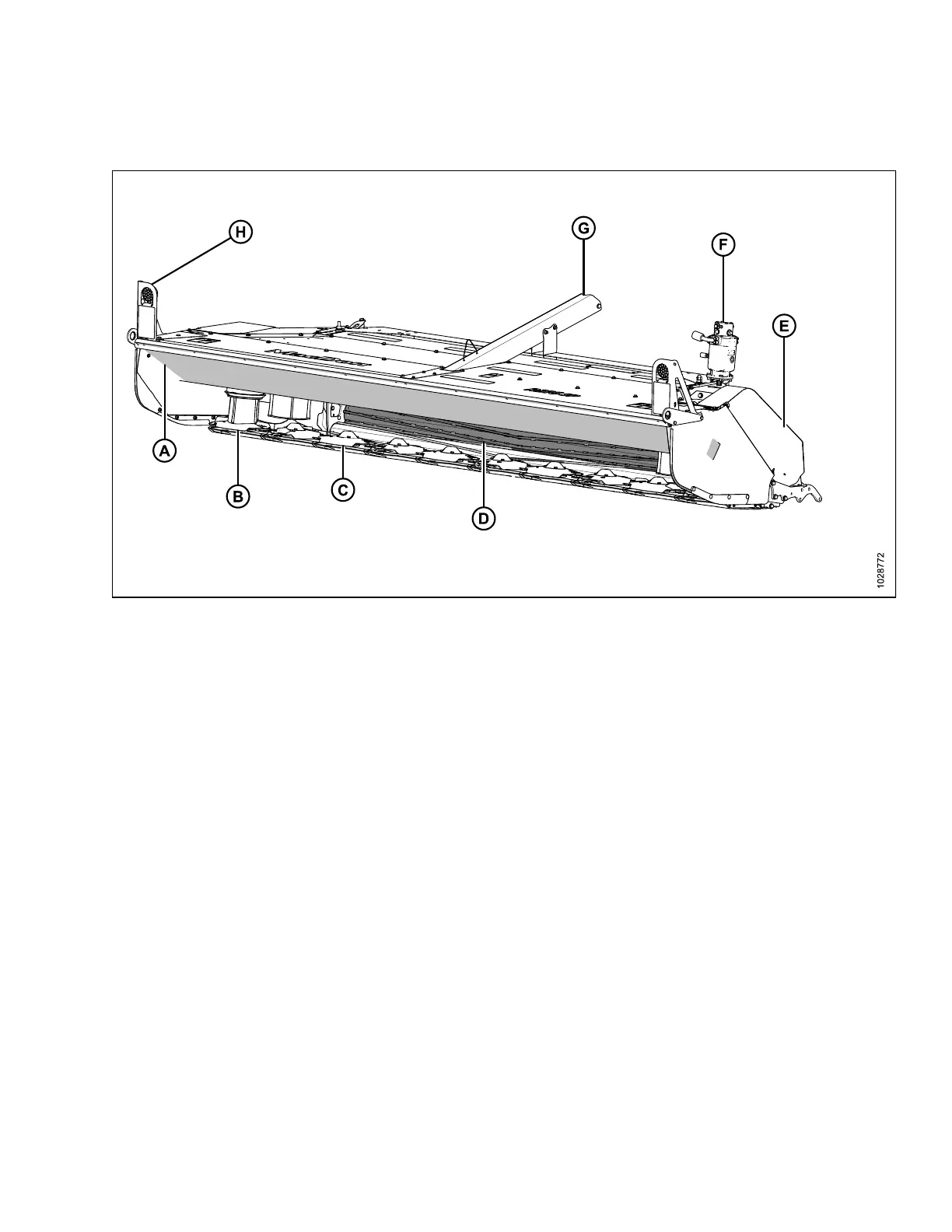

Figure 2.1: R216 SP Series rotary Rotary Disc Header
A - Front Curtain B - Disc Drum (Right) C - 10-Disc Cutterbar
D - Conditioner Rolls E - Drive Shield (Left) F - Hydraulic Motor
G - Center-Link Tube H - Hazard/Brake Lights
