214880 41 Revision A
3.6.2 Closing Driveshields
CAUTION
To reduce the risk of personal injury, do NOT operate the machine without the driveshields in place and secured.
NOTE:
Images shown in this procedure are for the left driveshield—the right driveshield is similar.

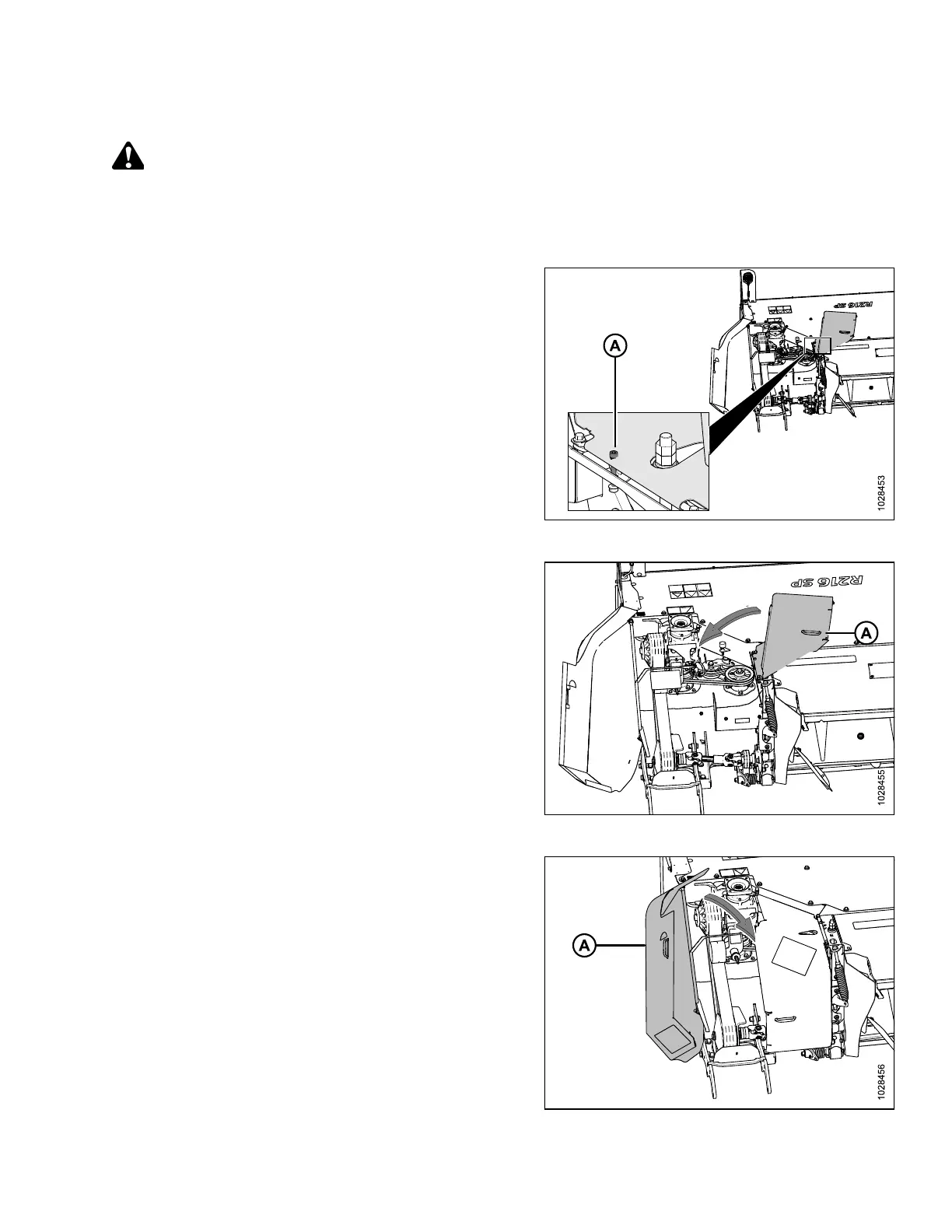

Figure 3.46: Driveshield Lock Latch
1. Lift lock latch (A) to disengage driveshield lock.
Figure 3.47: Left Driveshield
2. Move inboard half of driveshield (A) back to closed
position.
Figure 3.48: Left Driveshield
3. Move ourboard half of driveshield (A) back to closed
position.
OPERATION
