MacDon R216 SP - Removing Cutterbar Curtain

214880 131 Revision A
4.8.2 Removing Cutterbar Curtain

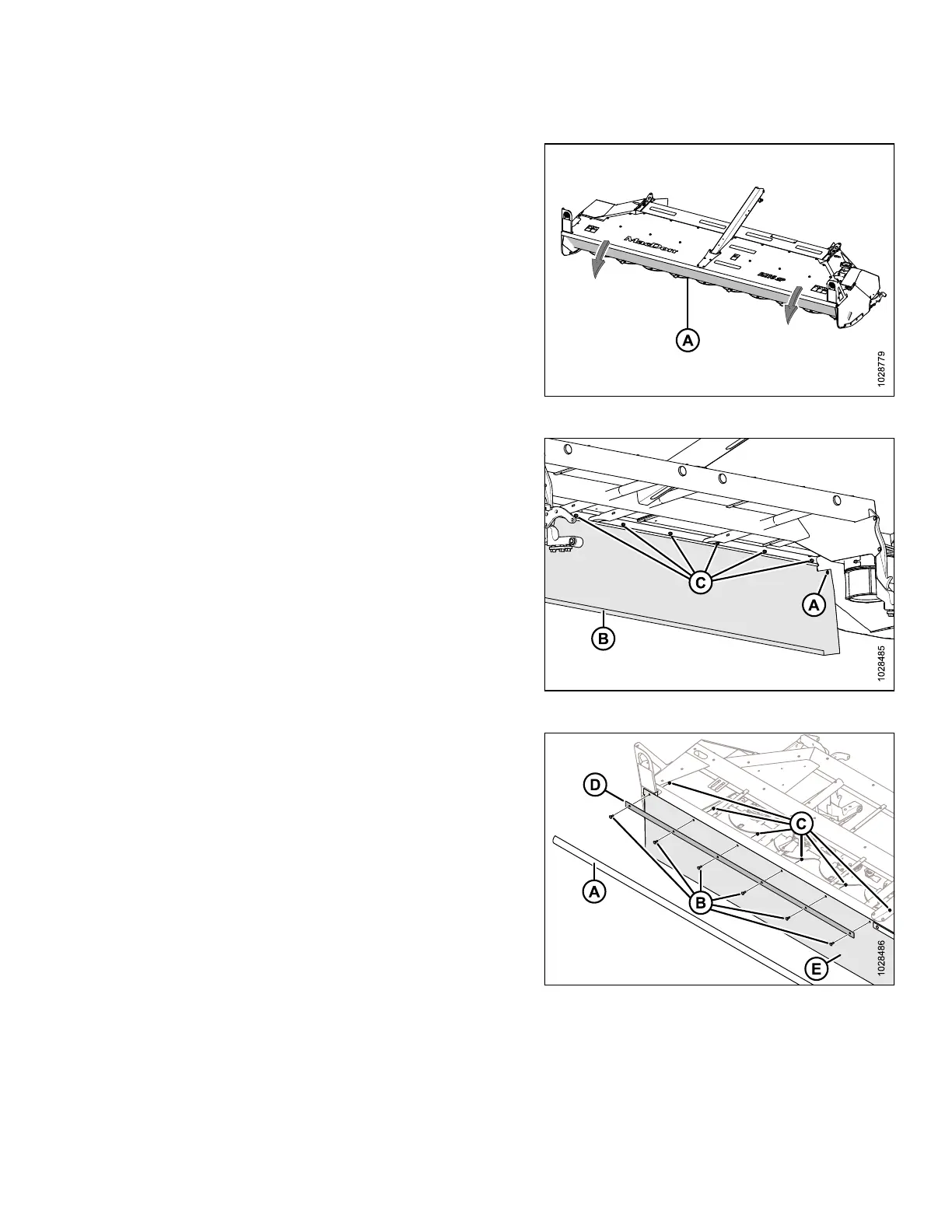

Figure 4.139: Cutterbar Curtain
1. Open cutterbar curtain (A). Refer to 3.7.1 Opening
Cutterbar Curtain, page 42.
Figure 4.140: Cutterbar Curtain – View from Below
NOTE:
Cutterbar removed from illustration for clarity.
2. Remove hex flange head bolt and washer (A) securing
curtain (B) to the inboard side of the end panel.
3. Loosen six lock nuts (C) securing curtain (B) to the front of
the header frame. Do NOT remove nuts at this time.
NOTE:
Curtain seam is on the inside.
Figure 4.141: Cutterbar Curtain – View from Front
NOTE:
Top shield removed from illustration for clarity.
4. Remove bumper (A).
5. Remove six M10 bolts (B), six lock nuts (C), and bumper
mount (D).
6. Repeat Steps 2, page 131 to 5, page 131 at the opposite
end of the header.
7. Remove curtain (E).
MAINTENANCE AND SERVICING
