214880 71 Revision A
4.5 Cutterbar System

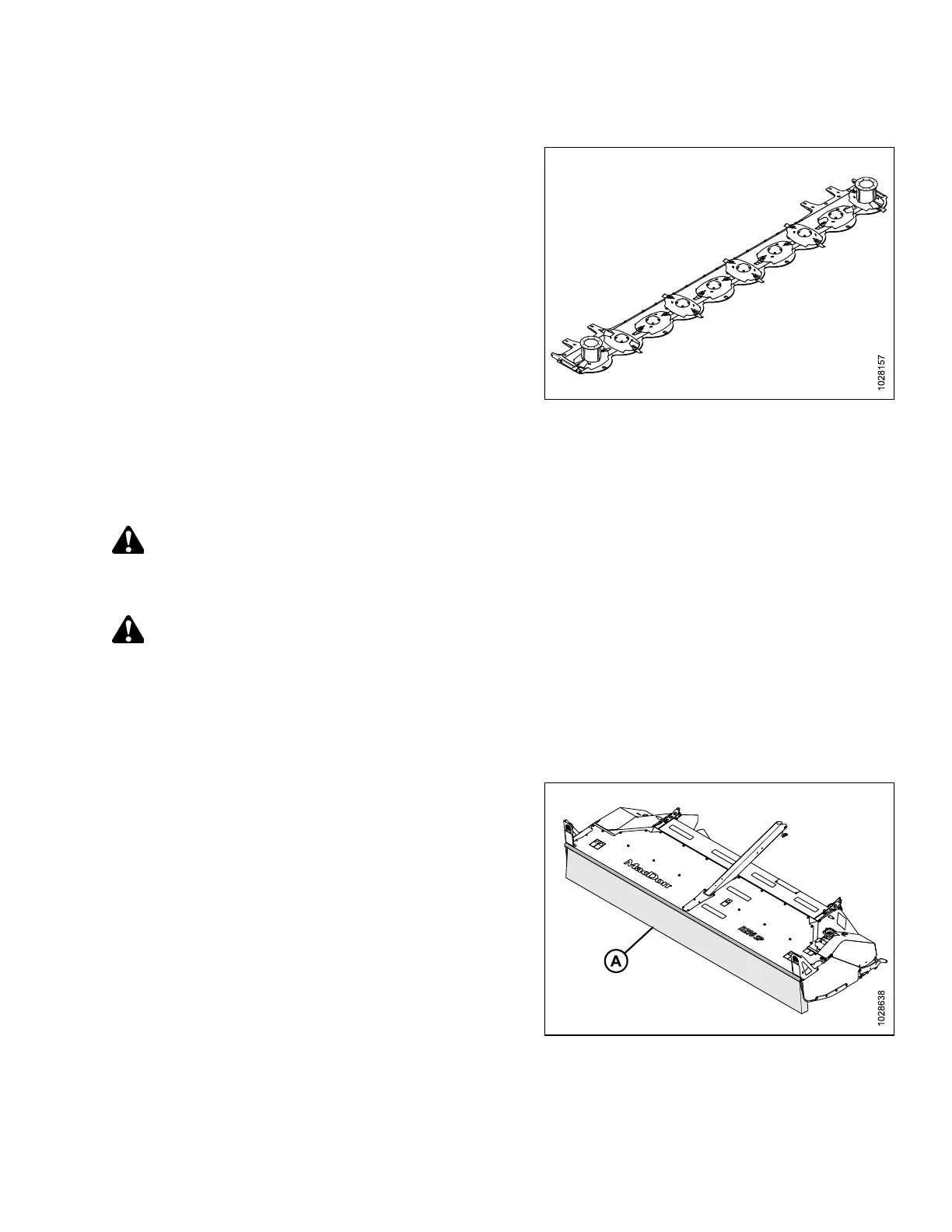

Figure 4.8: R216 SP Cutterbar
Check and change the lubricant at regular intervals. Refer to 4.3
Maintenance Requirements, page 64.
IMPORTANT:
Warm cold lubricant by idling the machine for 10 minutes prior
to checking level.
4.5.1 Lubricating Cutterbar
Checking and Adding Cutterbar Lubricant
WARNING
To avoid bodily injury or death from unexpected startup of machine, always stop engine and remove key from ignition
before leaving operator’s seat for any reason.
WARNING
Exercise caution when working around the blades. Blades are sharp and can cause serious injury. Wear gloves when
handling blades.
1. Park the machine on level ground.
2. Lower the header onto 25 cm (10 in.) blocks under both ends of the cutterbar.
3. Shut down the engine, and remove the key from the ignition.
Figure 4.9: Cutterbar Curtain
4. Open cutterbar curtain (A). Refer to 3.7.1 Opening
Cutterbar Curtain, page 42.
MAINTENANCE AND SERVICING
