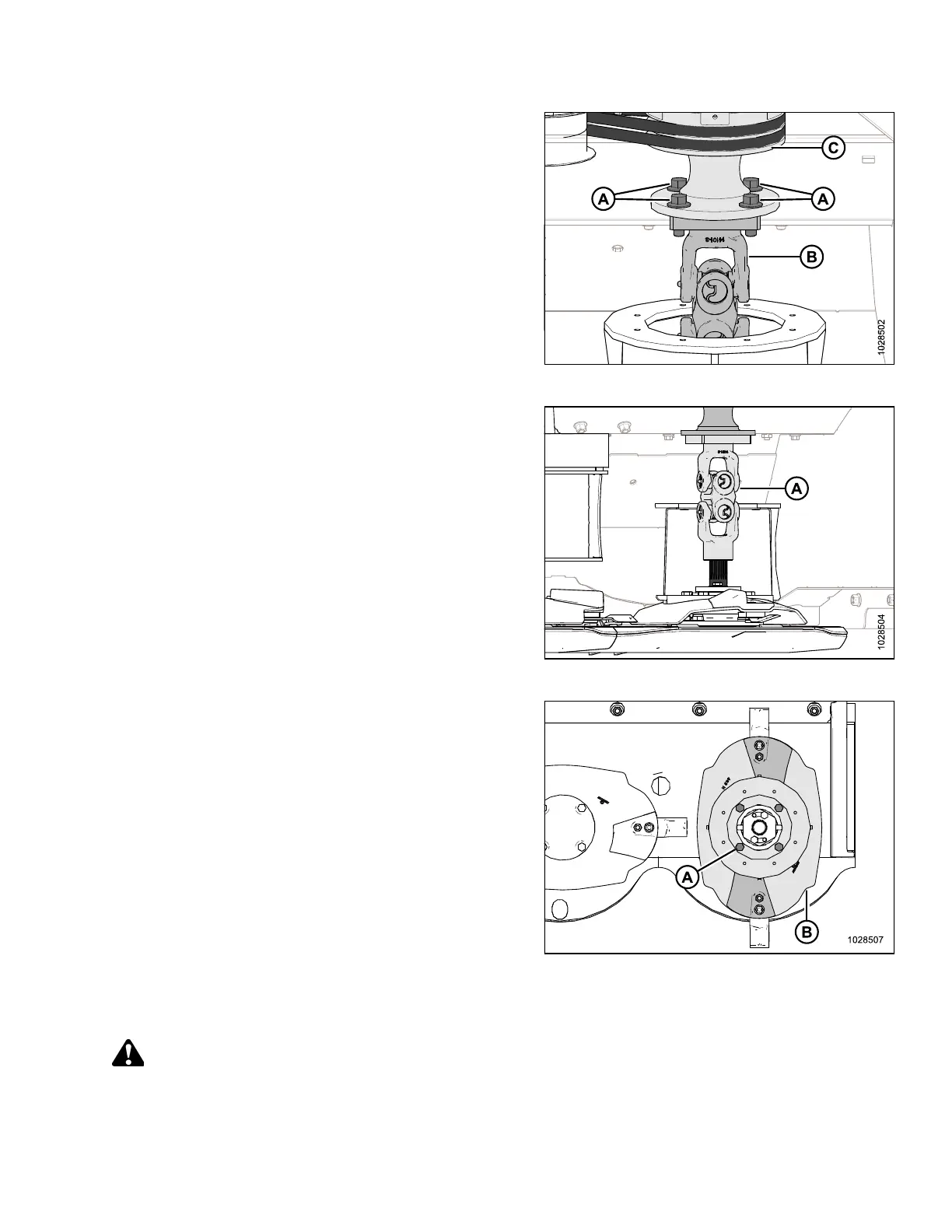

Figure 4.86: Driveline
8. Remove four M12 hex flange head bolts (A) securing
driveline assembly (B) to hub drive (C).
Figure 4.87: Drum and Tube Shield – Cutaway View
9. Slide driveline (A) downwards, tilt it to the side, and pull
driveline up and out of drum.
Figure 4.88: Driven Drum – View from Above
10. Use a 18 mm deep socket to remove four M12 bolts (A) and
washers holding the drum disc assembly (B) in place.
11. Remove drum disc assembly (B).
Installing Left Driven Drum and Driveline
DANGER
To avoid bodily injury or death from unexpected start-up or fall of a raised machine, stop engine, remove key, and
engage windrower lift cylinder safety props before going under machine for any reason.
MAINTENANCE AND SERVICING
