214880 106 Revision A

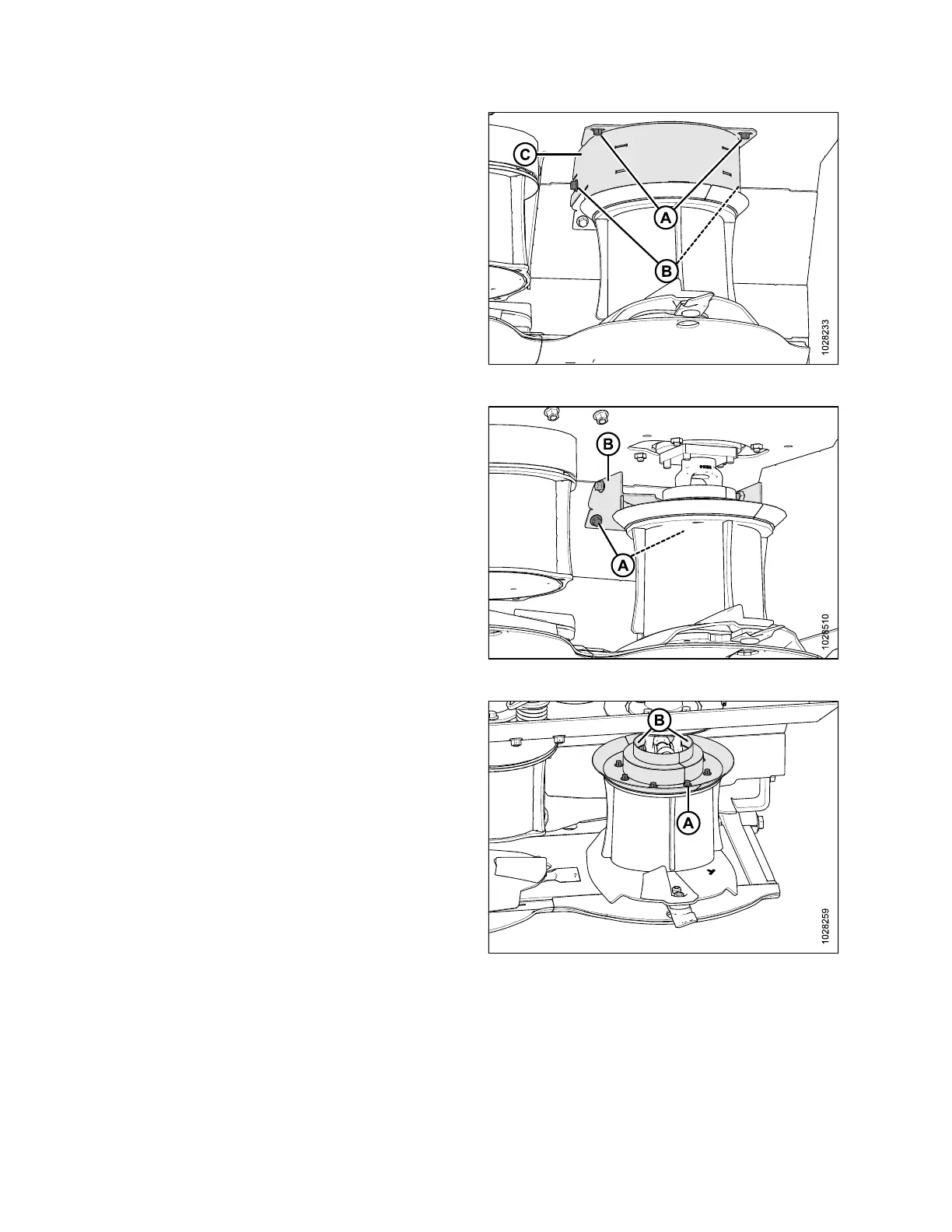

Figure 4.83: Driveshield
5. Remove two M10 hex flange head bolts (A) and loosen two
M10 hex flange head bolts (B). Pull back driveshield (C).
Figure 4.84: Driveshield
6. Remove two M10 hex flange head bolts (A) and remove
driveshield (B).
Figure 4.85: Driveline Shields
7. Remove eight M8 hex flange head bolts (A) and two drum
shields (B).
MAINTENANCE AND SERVICING
