214880 113 Revision A
Installing Right Driven Drum and Driveline
DANGER
To avoid bodily injury or death from unexpected start-up or fall of a raised machine, stop engine, remove key, and
engage windrower lift cylinder safety props before going under machine for any reason.
WARNING
Exercise caution when working around the blades. Blades are sharp and can cause serious injury. Wear gloves when
handling blades.

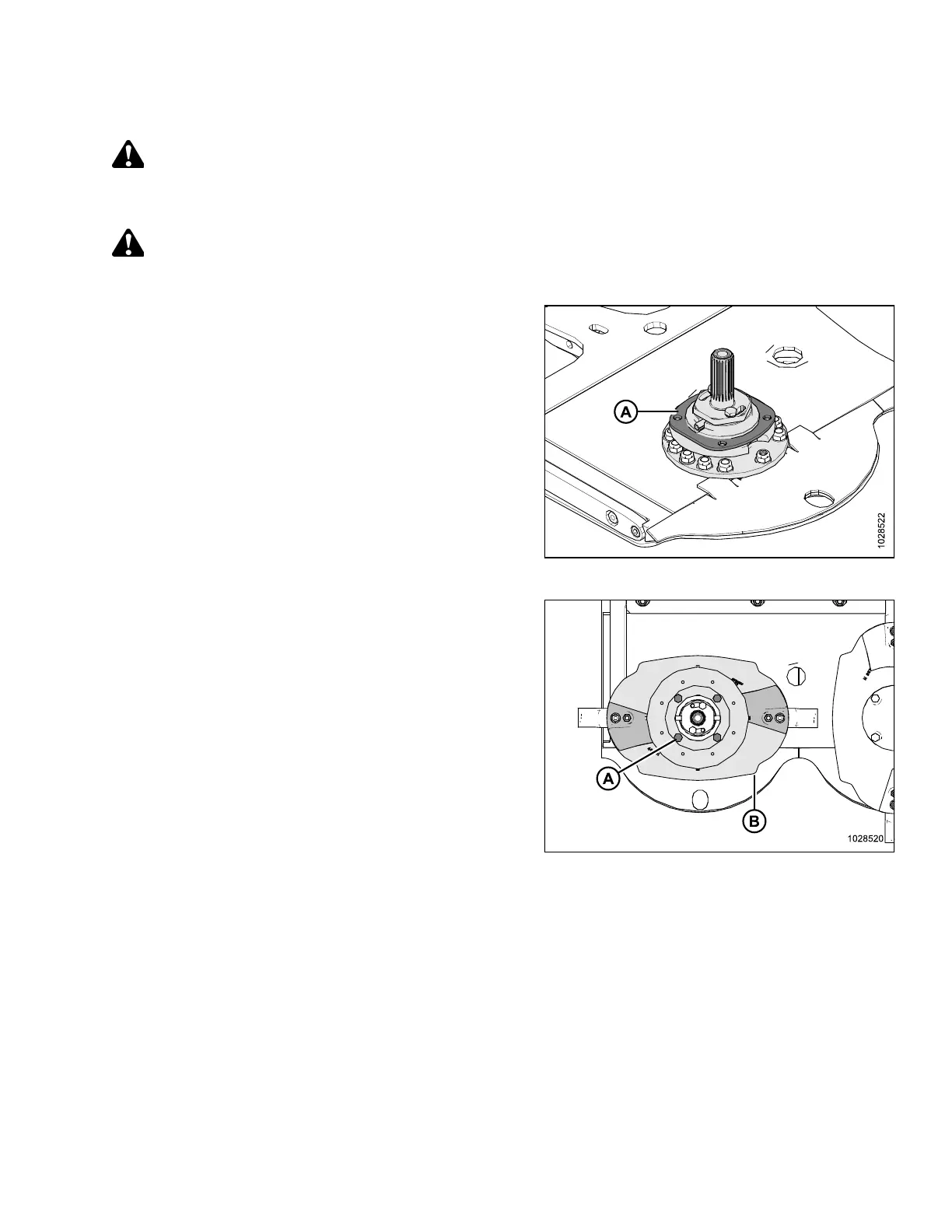

Figure 4.103: Right Driven Spindle
1. Ensure spacer (A) is on spindle.
Figure 4.104: Right Driven Drum – View from Above
2. Position the drum disc assembly (B) as shown.
3. Use a 18 mm deep socket to install four M12 bolts (A) and
washers that hold the drum disc in place. Torque hardware
to 85 Nm (63 lbf·ft).
MAINTENANCE AND SERVICING
