214880 32 Revision A

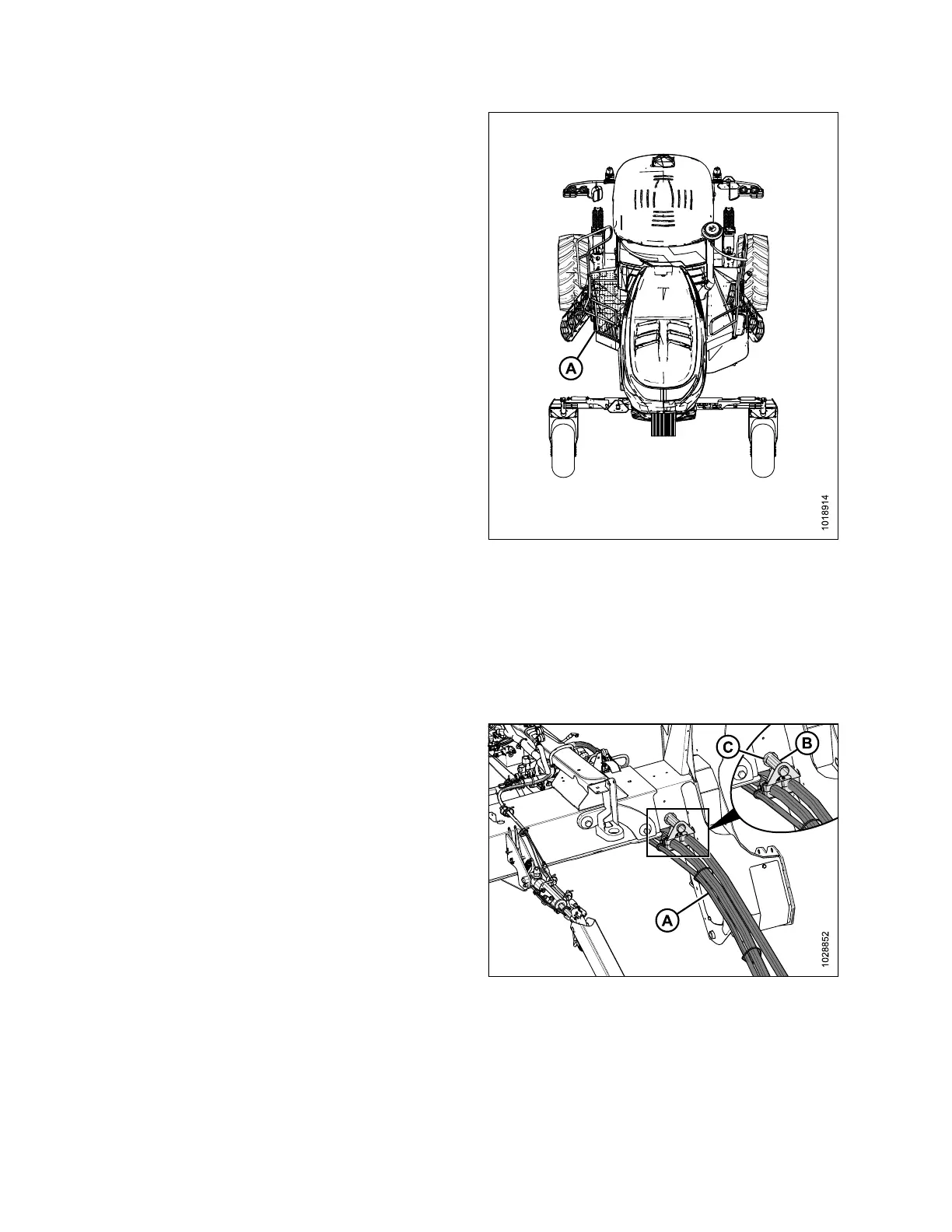

Figure 3.26: M1240 Windrower with Left Platform in
Closed Position
8. Close the windrower’s left side platform (A). Refer to
windrower operator’s manual for procedure.
Connecting Rotary Disc Header Hydraulics Using Quick Couplers
To connect the R216 Rotary Rotary Disc Header hydraulic hoses to the M1240 Windrower using quick couplers, follow
these steps:
If your windrower is equipped with hard plumb connections, refer to for connection instructions.
Figure 3.27: Hydraulic Hoses
1. Route hose bundle (A) from the disc header, under the
windrower frame, then insert pin (B) into hole (C) in the
windrower frame.
NOTE:
Route hoses as straight as possible and avoid rub/wear
points that could damage the hydraulic hoses.
NOTE:
Adding anti-seize to the hose holder pin will make future
removal easier.
OPERATION
