214880 31 Revision A

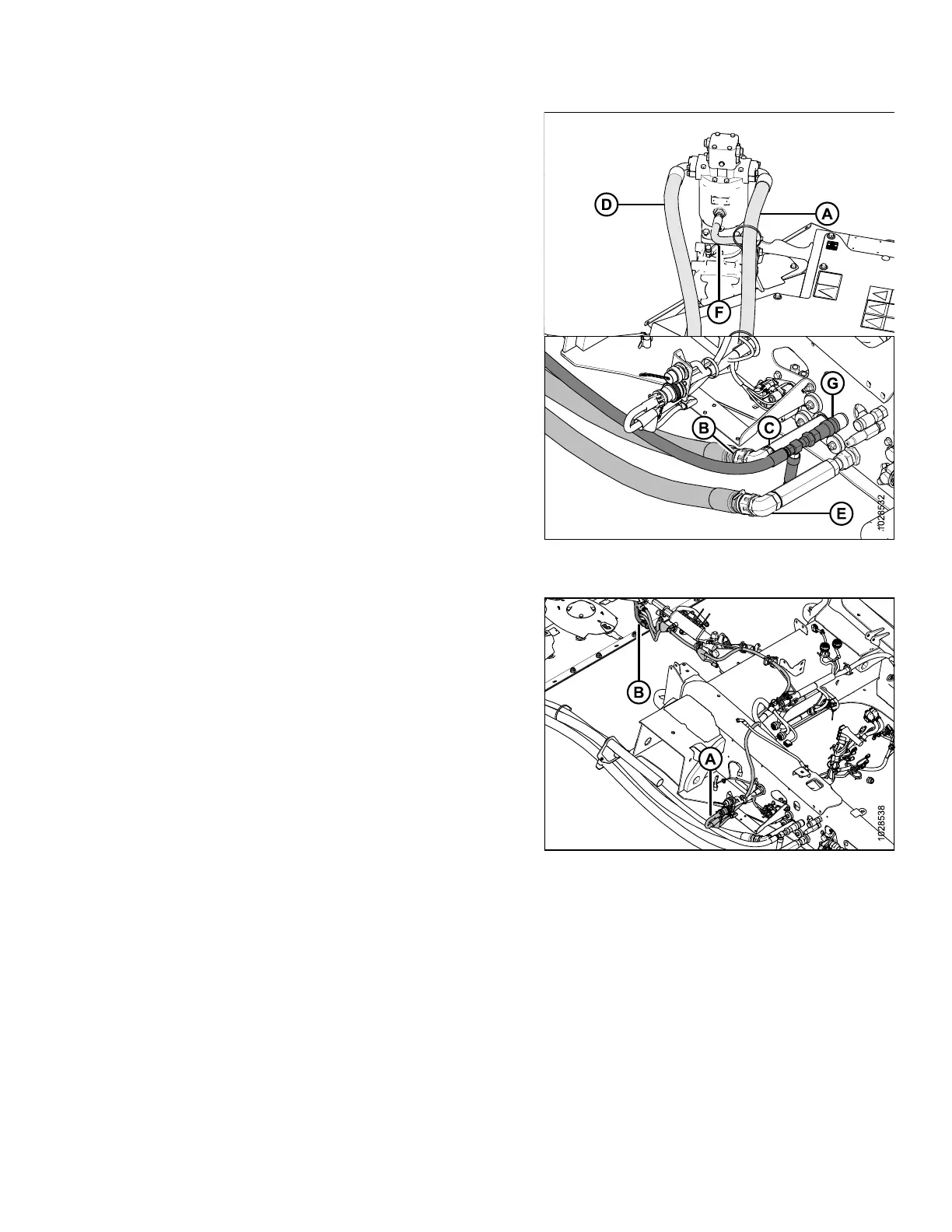

Figure 3.24: Hydraulic Connections on Header and
M1240 Windrower
6. Make the following hydraulic connections to the
windrower:
a. Connect disc pressure hose (A) marked with a red cable
tie (B) to hard plumb fitting marked with a red cable
tie (C) and torque to 205–226 Nm (151–167 lbf·ft)
b. Connect disc return hose (D) to hard plumb fitting (E)
and torque to 205–226 Nm (151–167 lbf·ft)
c. Connect case drain hose (F) to fitting (G)
Figure 3.25: Electrical Connections
7. Connect header adapter harness (A) and main header
harness (B).
