3.6 Driveshields
Driveshields protect drive components from damage and provide access to drive components for maintenance and
servicing. Driveshields are located on the left and right ends of the header.
3.6.1 Opening Driveshields
CAUTION
To reduce the risk of personal injury, do NOT operate the machine without the driveshields in place and secured.

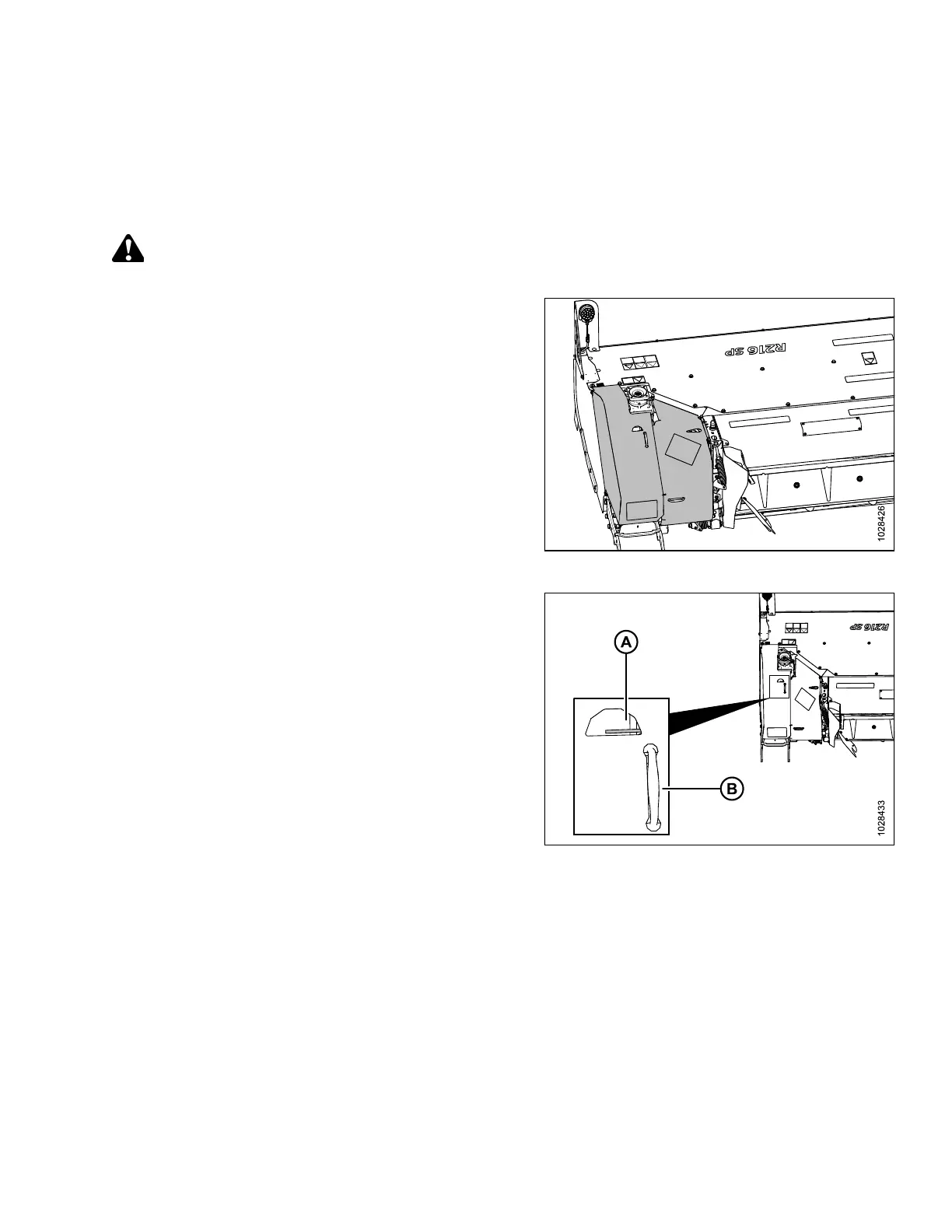

Figure 3.42: Left Driveshield
NOTE:
Images shown in this procedure are for the left driveshield—the
right driveshield is similar.
Figure 3.43: Driveshield Latch and Handle
1. Engage the release latch and lift release lever (A) and pull
handle (B).
OPERATION
