214880 38 Revision A
Self-aligning hydraulic center-link (if installed):

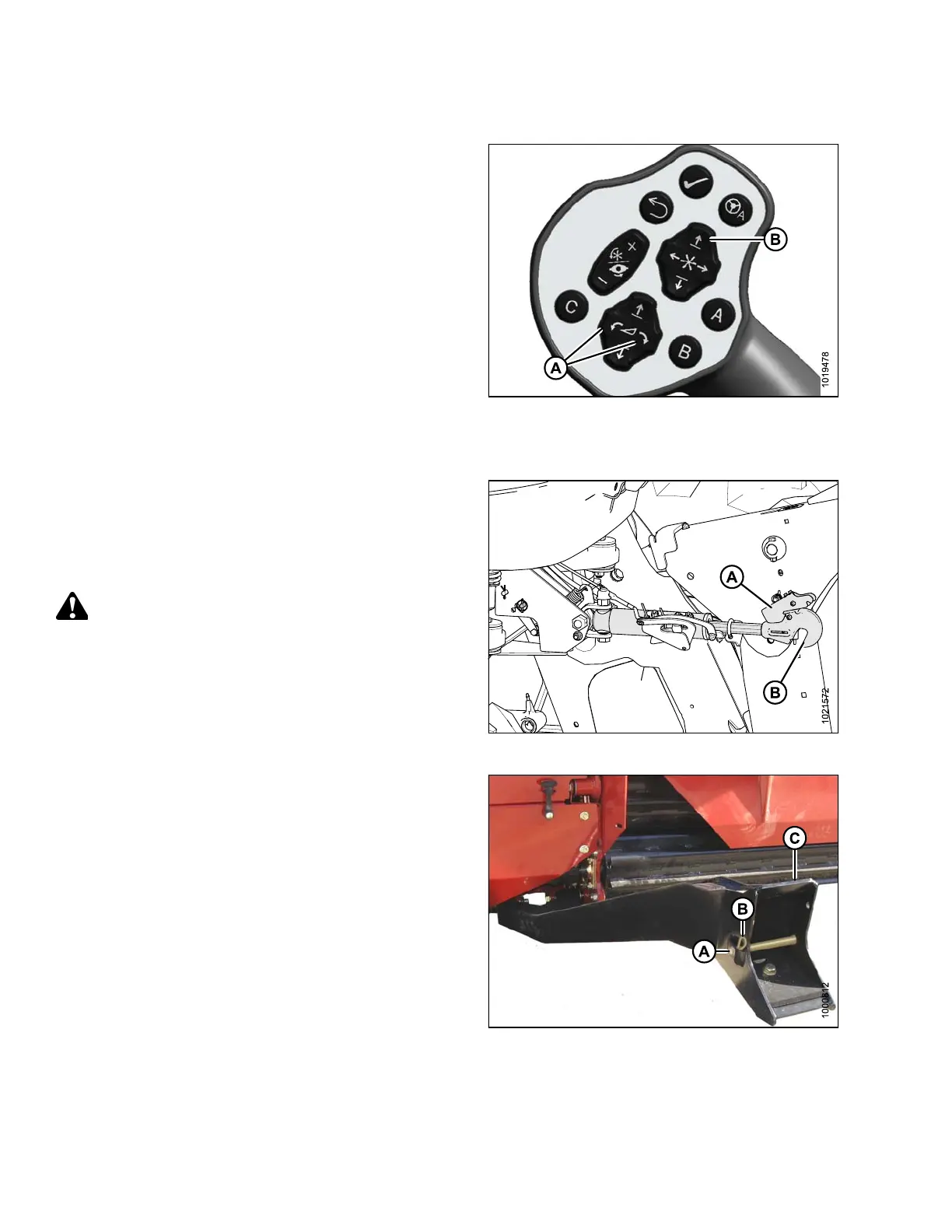

Figure 3.39: GSL
13. Use HEADER TILT cylinder switches (A) on GSL to release
load on center-link cylinder.
14. Operate the link lift cylinder with the REEL UP switch (B) to
disengage the center-link from the header.
Hydraulic center-link without self-alignment:
Figure 3.40: Hydraulic Center-Link
15. Shut off the engine and remove the key.
16. Lift hook release (A) and lift hook (B) off header pin.
17. Disconnect header harness and remote baffle connector
(if equipped).
CAUTION
Check to be sure all bystanders have cleared the area.
18. Start the engine.
Figure 3.41: Header Support
19. Back the windrower slowly away from header.
20. Turn off engine and remove key from ignition.
21. Reinstall clevis pin (A) through support (C) and secure with
hairpin (B). Repeat for opposite side.
OPERATION
