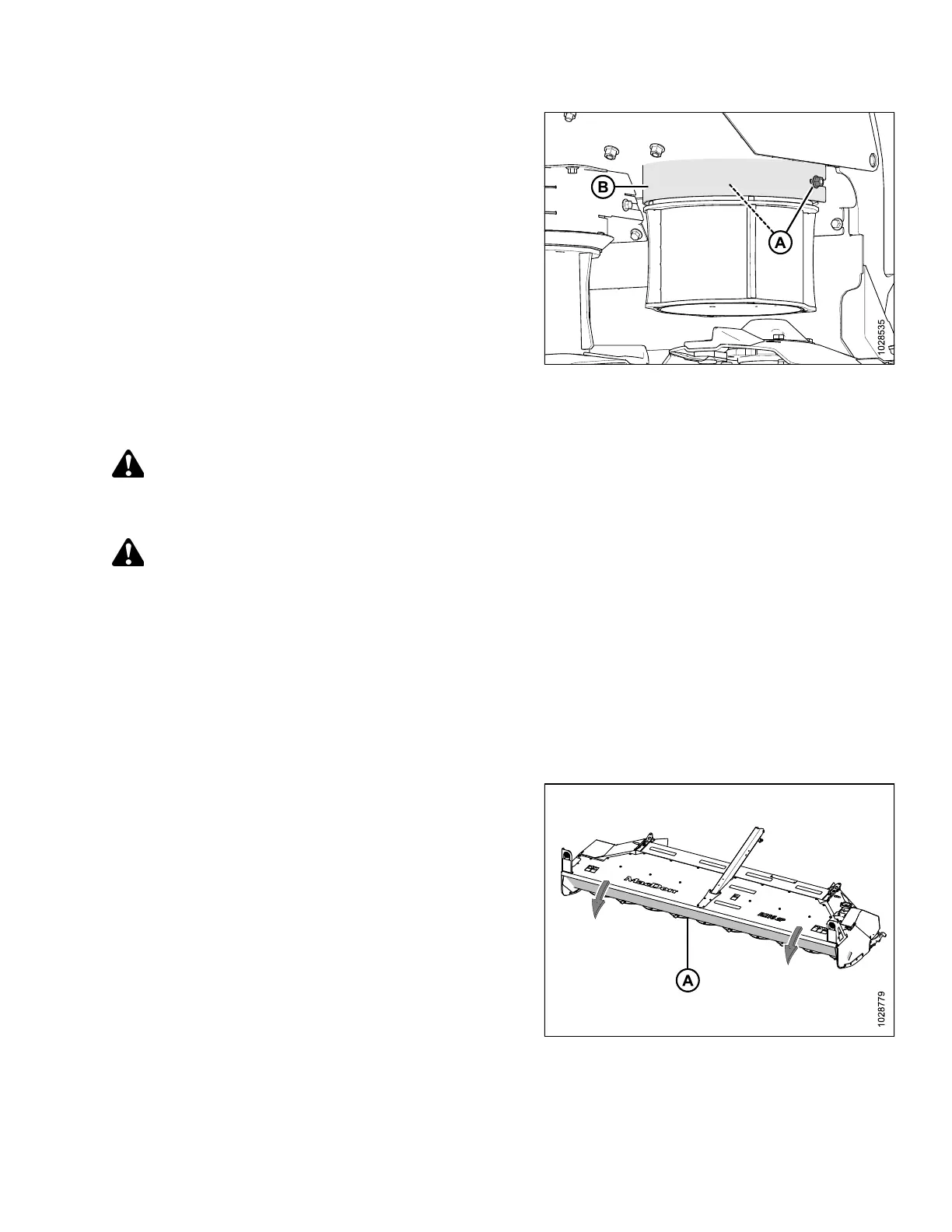

Figure 4.81: Driveshield
3. Position driveshield (B) as shown. Use two M10 hex flange
head bolts (A) to secure driveshield (B) in place.
4. Repeat Step 1, page 104 to Step 3, page 105 to install the
opposite suspended drum.
5. Close cutterbar curtain (A). Refer to 3.7.2 Closing Cutterbar
Curtain, page 43.
Removing Left Driven Drum and Driveline
DANGER
To avoid bodily injury or death from unexpected start-up or fall of a raised machine, stop engine, remove key, and
engage windrower lift cylinder safety props before going under machine for any reason.
WARNING
Exercise caution when working around the blades. Blades are sharp and can cause serious injury. Wear gloves when
handling blades.
NOTE:
To grease the vertical drivelines: Follow steps 1-5, grease driveline, and reinstall driveshield.
1. Raise the header.
2. Shut down the engine, and remove the key from the ignition.
3. Engage windrower lift cylinder safety props. Refer to 3.3.1 Engaging and Disengaging Header Safety Props – M1240
Windrower, page 22.
Figure 4.82: Cutterbar Curtain
4. Open cutterbar curtain (A). Refer to 3.7.1 Opening
Cutterbar Curtain, page 42.
