214880 146 Revision A
4.10 Replacing Driveshields
If driveshields are missing, severely damaged, or are not securely installed due to damage, they must be replaced.
4.10.1 Removing Driveshields
CAUTION
To reduce the risk of personal injury, do NOT operate the machine without the driveshields in place and secured.
NOTE:
Images shown in this procedure are for the left driveshield—the right driveshield is similar.

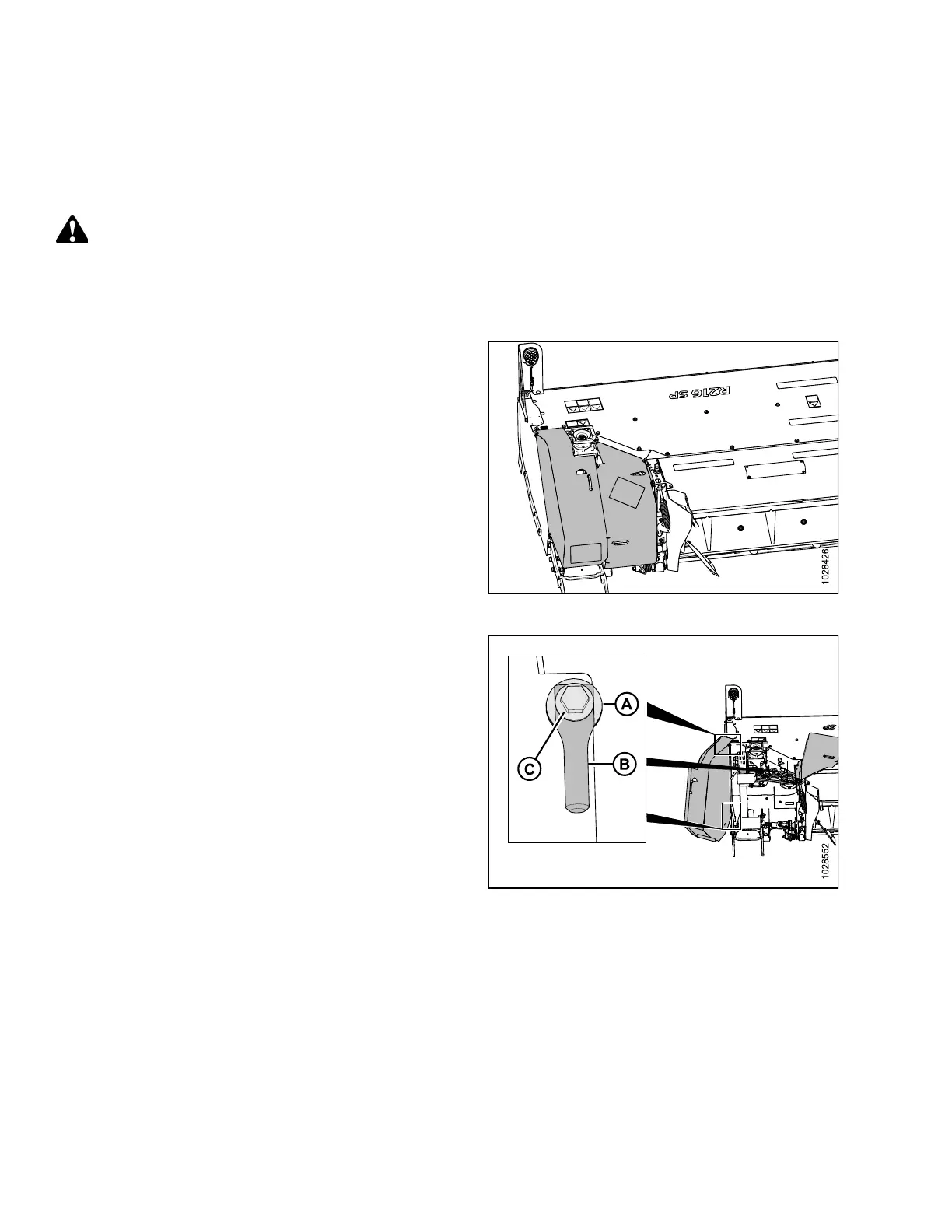

Figure 4.178: Left Driveshield
1. Open driveshields. Refer to 3.6.1 Opening Driveshields,
page 39 .
Figure 4.179: Retaining Pins on Driveshields
2. Remove bolt (C), retainer pin (B), and washer (A) from the
top and bottom of the outboard and inboard half of the
driveshield.
MAINTENANCE AND SERVICING
