214880 121 Revision A
Installing Cutterbar Spindle Shear Pin
WARNING
To avoid bodily injury or death from unexpected startup of machine, always stop engine and remove key from ignition
before leaving operator’s seat for any reason.
CAUTION
Discblades have two sharp cutting edges that can cause serious injury. Exercise caution and wear gloves when working
with blades.

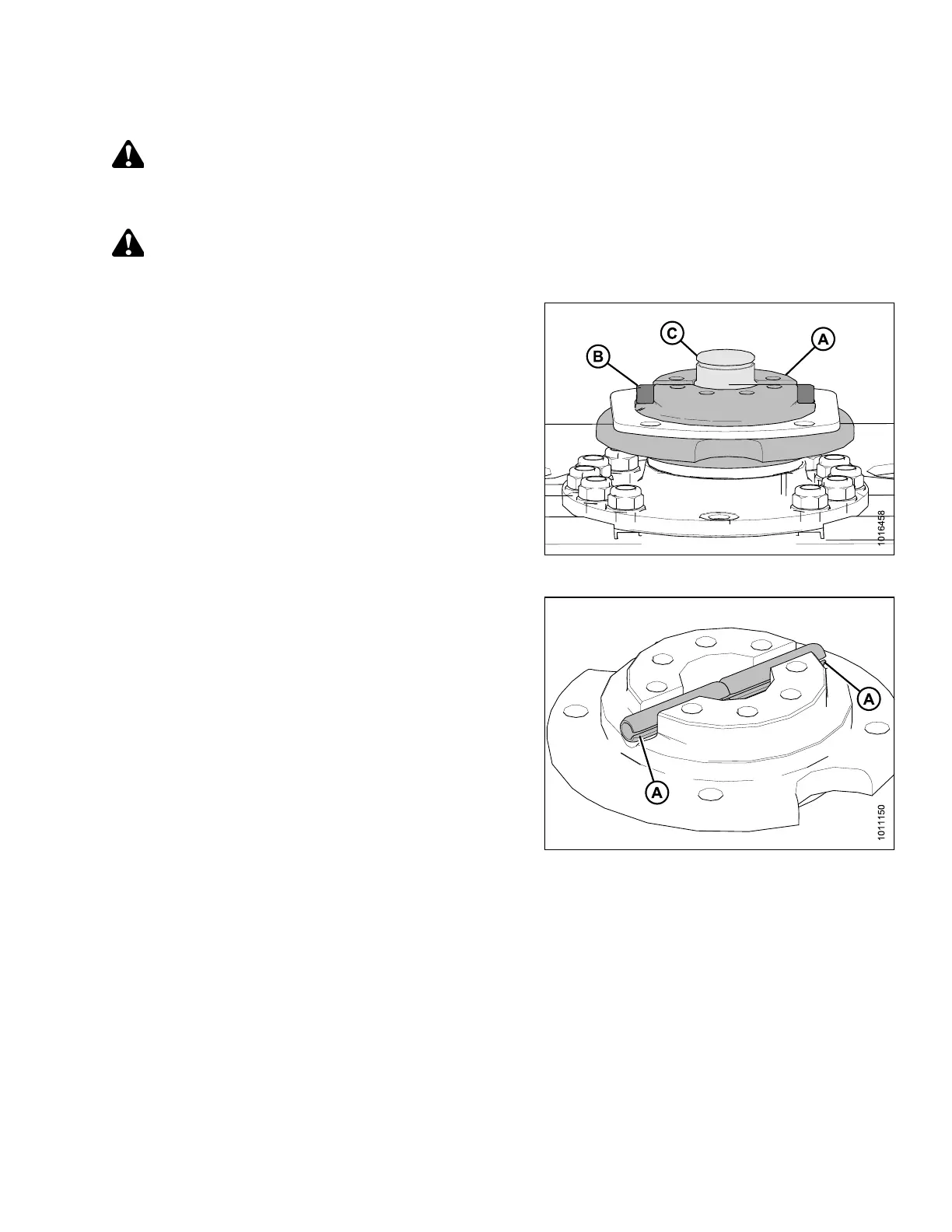

Figure 4.120: Cutterbar Spindle
1. Fill the space above the bearing with grease. Refer to the
inside back cover of this manual.
2. Place the hub (A) on the spindle (C).
3. Install shear pins (B).
NOTE:
Ensure that the ends of the shear pins do not protrude past
the step in the hub.
Figure 4.121: Shear Pin Orientation
4. Observe orientation of groove in shear pin (A).
IMPORTANT:
The correct shear pin orientation is critical. Both shear pin
grooves (A) must be facing the same direction and parallel
to the cutterbar.
NOTE:
Shaft removed from illustration for clarity.
MAINTENANCE AND SERVICING
