MacDon R216 SP - Page 128

214880 120 Revision A

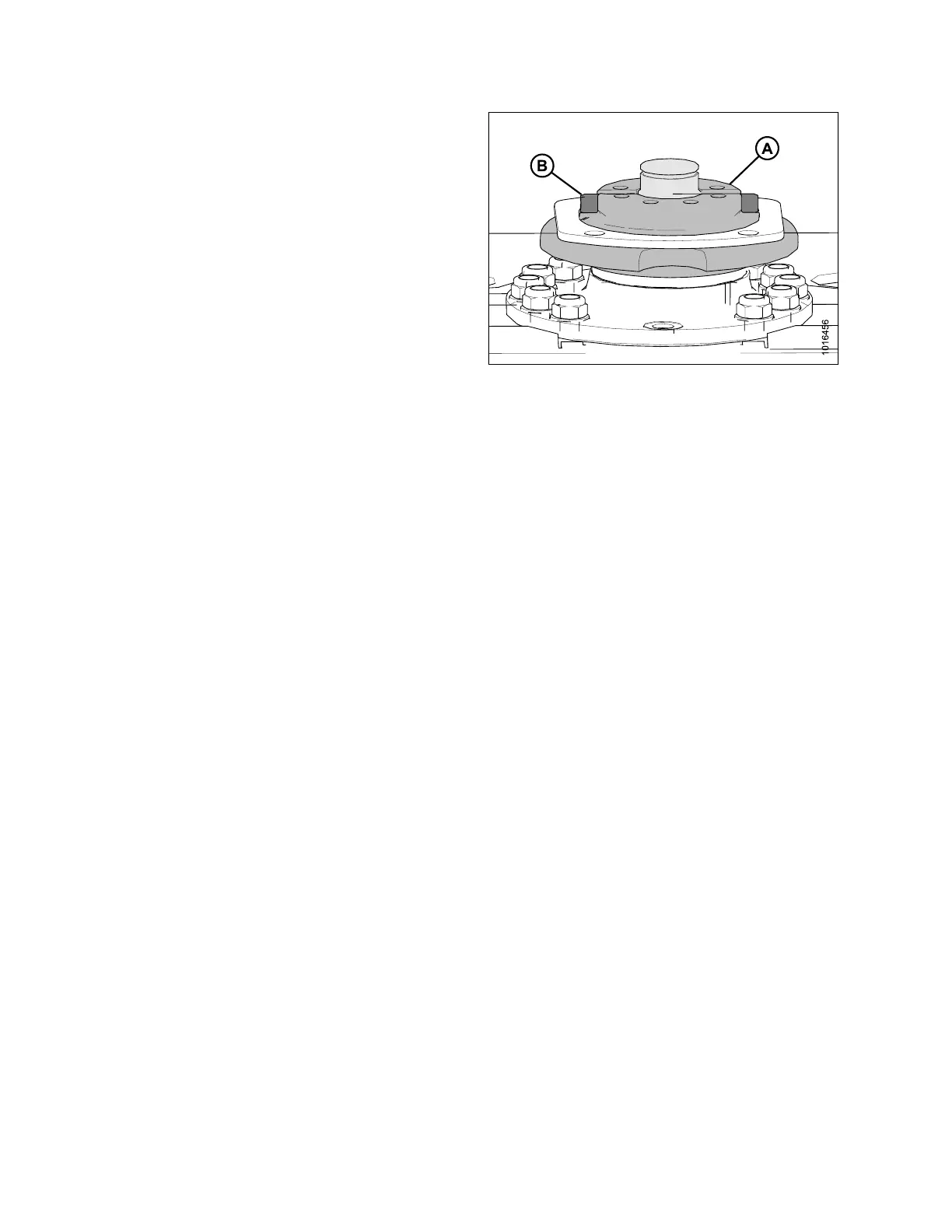

Figure 4.119: Cutterbar Spindle
11. Remove shear pins (B). Do NOT damage the pin bore on the
pinion.
12. Remove the hub (A).
13. Check the nut and hub for damage. Replace if necessary.
MAINTENANCE AND SERVICING
