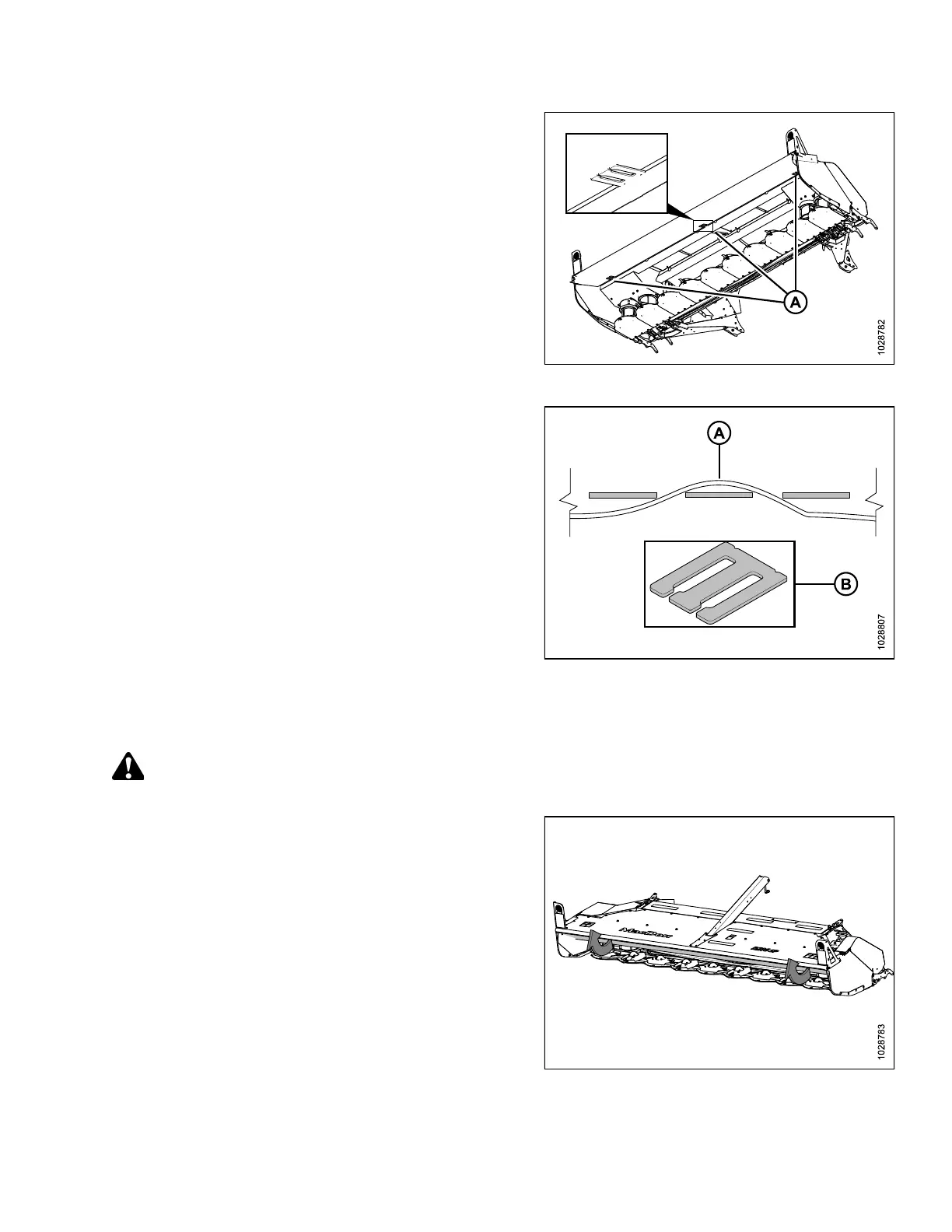

Figure 3.51: Cutterbar Curtains — View from Below
2. Securing curtain in place at locations (A) using 3 clips
provided.
Figure 3.52: Cutterbar Curtain and Retaining Clips
NOTE:
Cutterbar curtain (A) is held in place
between the tines of retaining clips (B).
3.7.2 Closing Cutterbar Curtain
CAUTION
To avoid injury, keep hands and fingers away from corners of doors when closing.
Figure 3.53: Cutterbar Curtain
1. Pull curtain outward from retaining clips and lower curtain.
OPERATION
