Removing Cutterbar Spindle Shear Pin
WARNING
To avoid bodily injury or death from unexpected startup of machine, always stop engine and remove key from ignition
before leaving operator’s seat for any reason.
CAUTION
Discblades have two sharp cutting edges that can cause serious injury. Exercise caution and wear gloves when working
with blades.
1. Raise the header fully.
2. Shut off the engine, and remove the key from the ignition.
3. Engage windrower lift safety props. Refer to 3.3.1 Engaging and Disengaging Header Safety Props – M1240
Windrower, page 22.

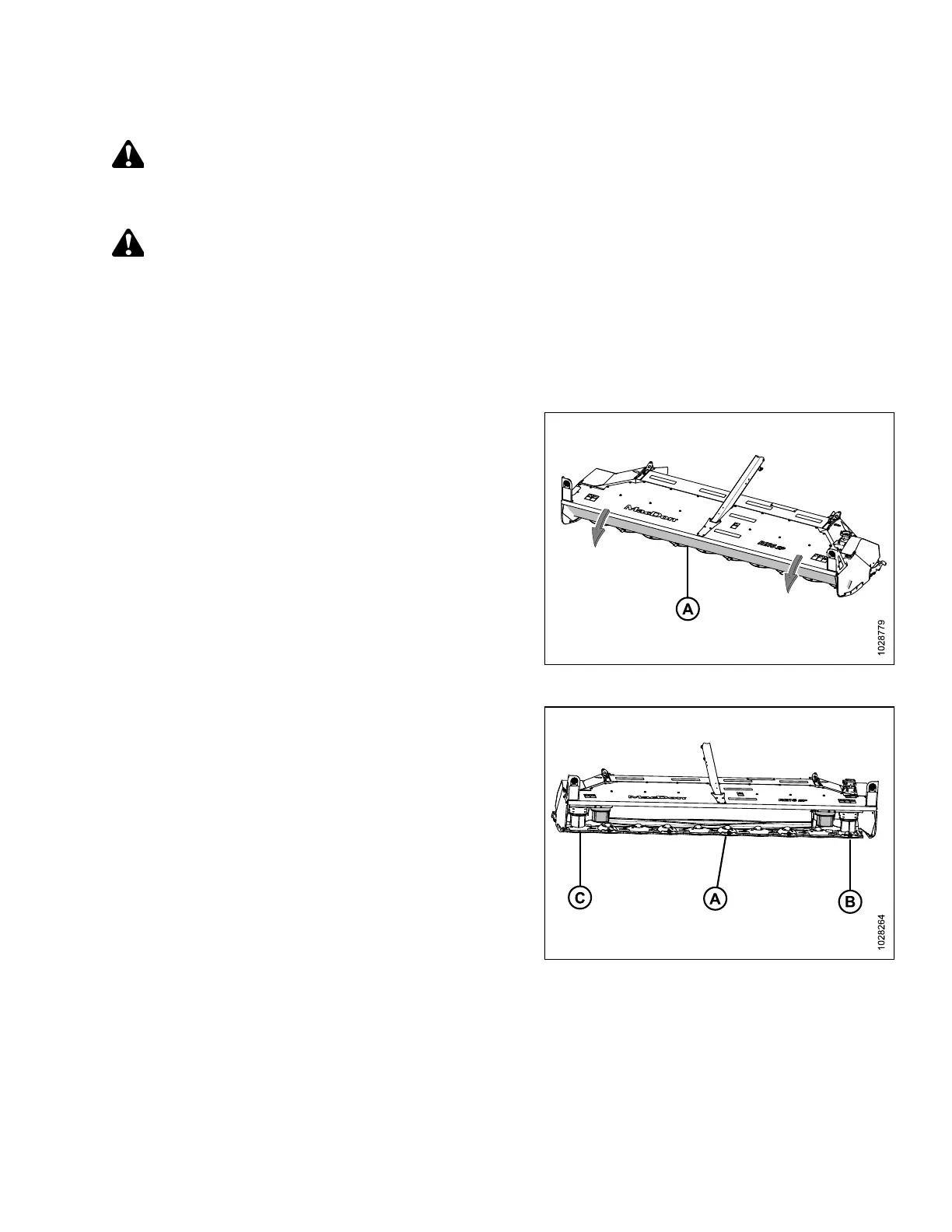

Figure 4.112: R216 SP
4. Open cutterbar curtain (A). Refer to 3.7.1 Opening
Cutterbar Curtain, page 42.
5. Clean debris from work area.
Figure 4.113: R216 SP Cutterbar
6. Depending on the type of disc with a broken shear pin,
refer to the applicable disc removal procedure:
• To remove cutterbar disc (A), refer to Removing
Cutterbar Discs, page 77.
• To remove left driven drum (B), refer to Removing Left
Driven Drum and Driveline, page 105.
• To remove right driven drum (C), refer to Removing
Right Driven Drum and Driveline, page 110.
