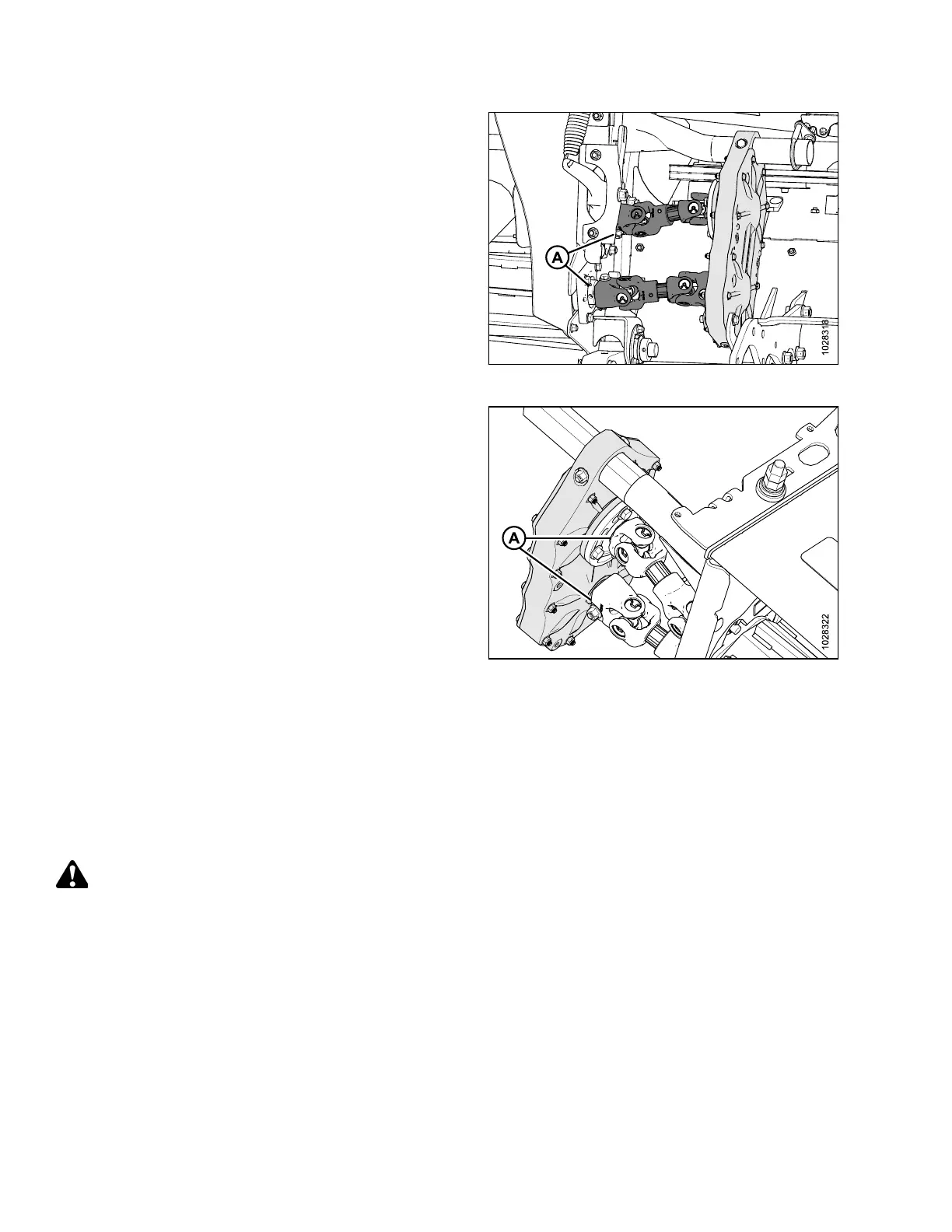

Figure 4.146: Conditioner Drive U-Joints
5. Inspect conditioner drive U-joints (A) for signs of wear or
damage. If the U-joints need replacing, contact your Dealer.
Figure 4.147: Roll Timing Gearbox Bearings
6. Inspect roll timing gearbox bearings (A) for signs of wear or
damage. If the bearing needs replacing, contact your
Dealer.
Conditioner Drive Belt
The conditioner drive belt is located inside the left driveshield and is tensioned with a spring tensioner.
Inspecting Conditioner Drive Belt
Check the belt tension and inspect for damage or wear every 50 hours or annually (preferably before the start of the
cutting season).
WARNING
To avoid bodily injury or death from unexpected startup of machine, always stop engine and remove key from ignition
before leaving operator’s seat for any reason.
1. Lower the disc header fully.
2. Shut down the engine, and remove the key from the ignition.
