4.4.2 Lubrication Locations

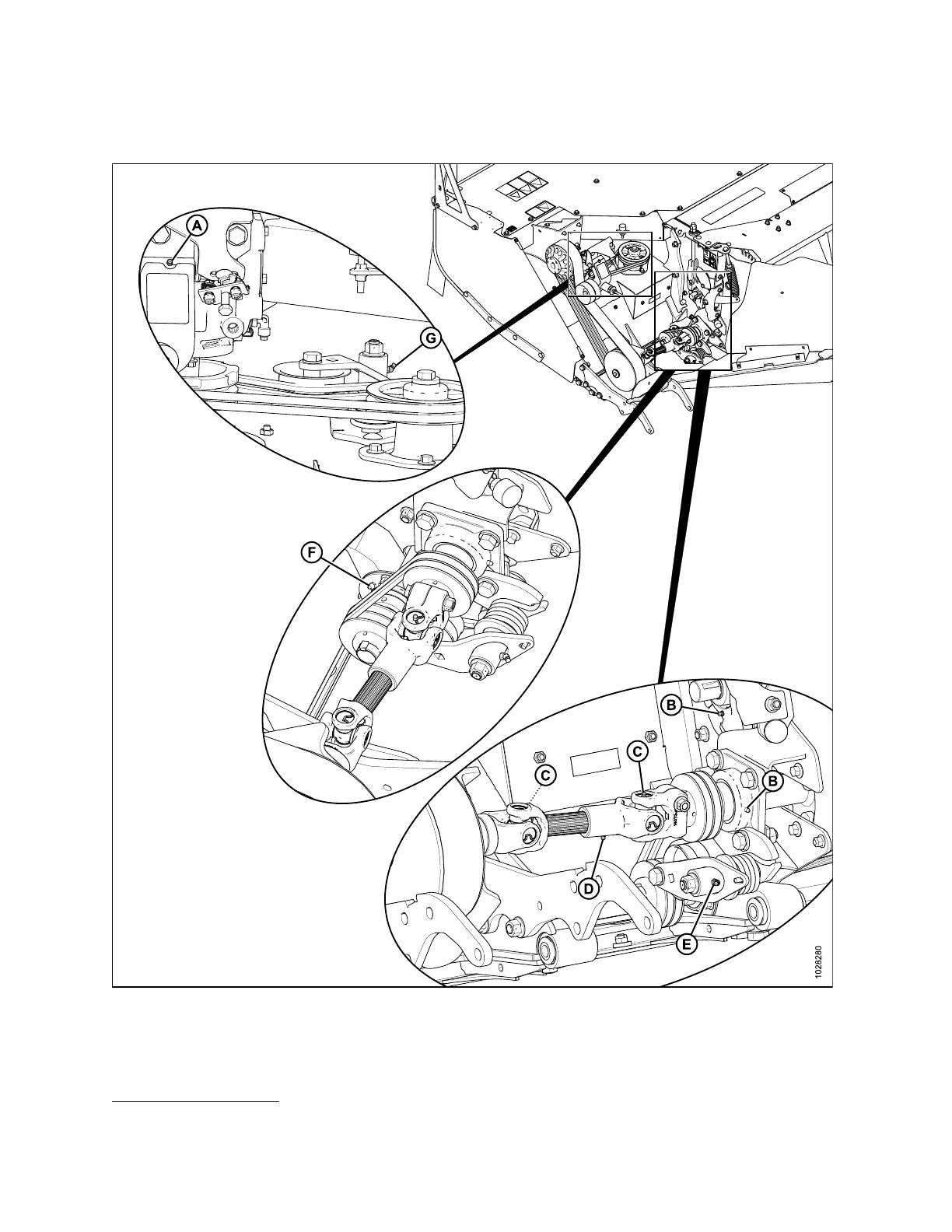

Figure 4.6: Left Side Lubrication Locations
A - Idler/Tensioner Pivot B - Bearing, Roller Conditioner (2 Places) C - U-Joint, Conditioner Driveline (2 Places)
D - Slip Joint, Conditioner Driveline
4
E - Idler/Tensioner Pivot F - Bearing, Feed Roll
G - Tensioner Arm
MAINTENANCE AND SERVICING
4. Use high-temperature, extreme-pressure (EP2) performance grease with 10% max molybdenum disulphide (NLGI
grade 2) lithium base.
