214880 70 Revision A

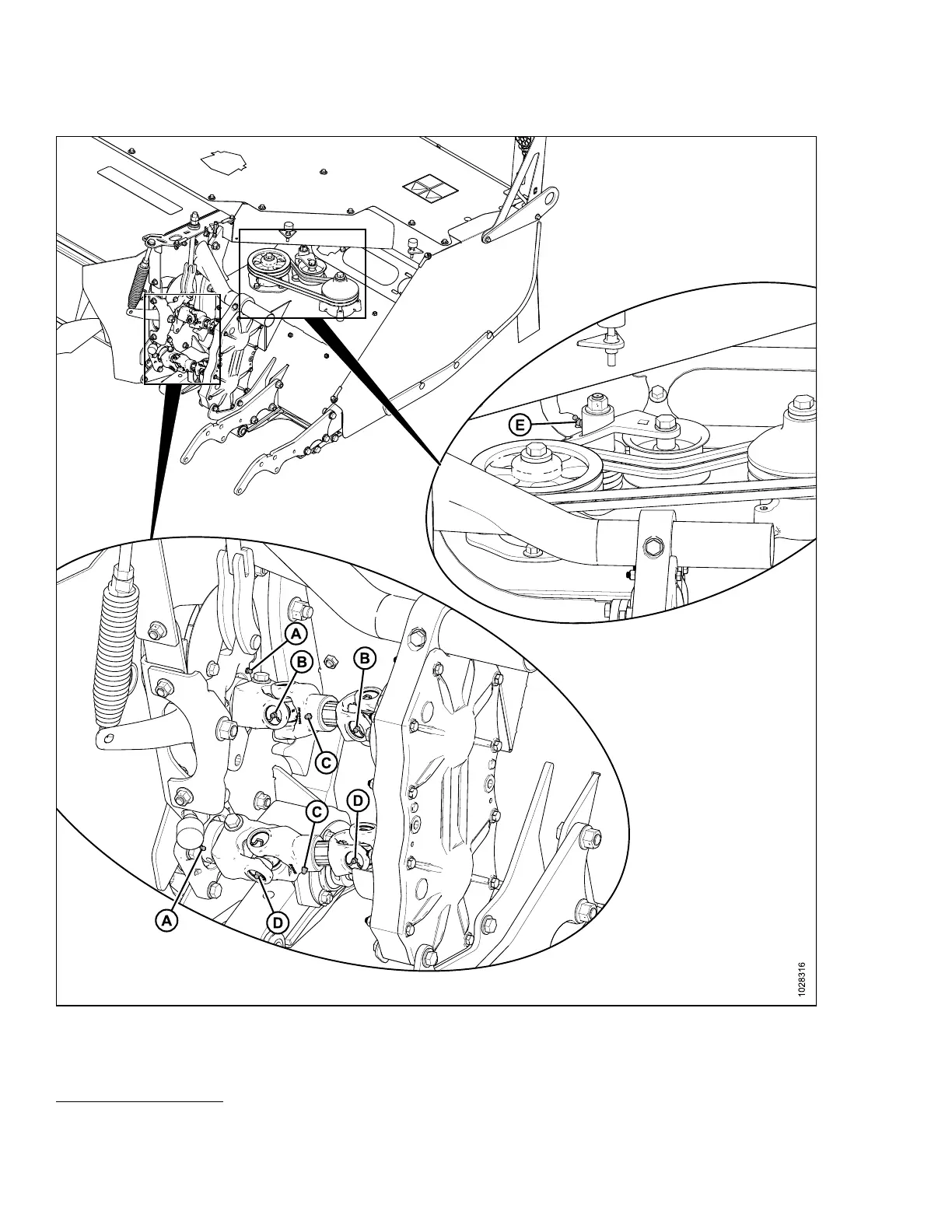

Figure 4.7: Right Side Lubrication Locations
A - Bearing, Roller Conditioner (2 Places) B - U-Joint, Upper Driveline (2 Places) C - Slip Joints, Conditioner Drivelines
5
D - U-Joint, Lower Driveline (2 Places) E - Idler Pivot
MAINTENANCE AND SERVICING
5. Use high-temperature, extreme-pressure (EP2) performance grease with 10% max molybdenum disulphide (NLGI
grade 2) lithium base.
