Connecting Rotary Disc Header Hydraulics and Electrical – M1240 Windrowers

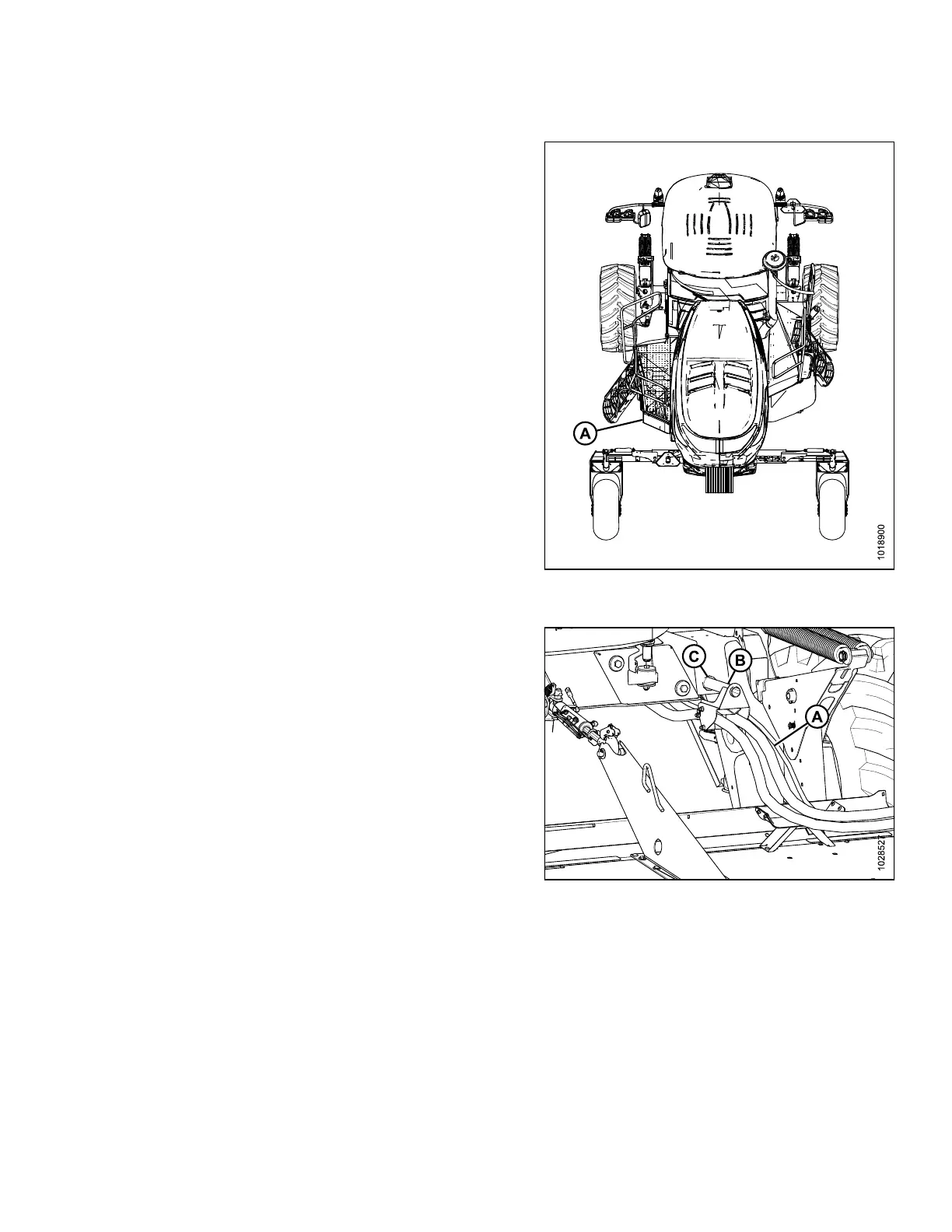

Figure 3.20: Windrower with Left Platform in Open
Position
1. Move windrower left (cab forward) platform (A) to the
OPEN position. For instructions, refer to the windrower
operator’s manual.
Figure 3.21: Hydraulic Hoses
2. Route hose bundle (A) from the header, under the
windrower frame, then insert pin (B) into the hole (C) in the
windrower frame.
NOTE:
Route hoses as straight as possible to avoid rub/wear
points that could damage the hydraulic hoses.
3. Rest hoses on header.
