Installing Rock Guards

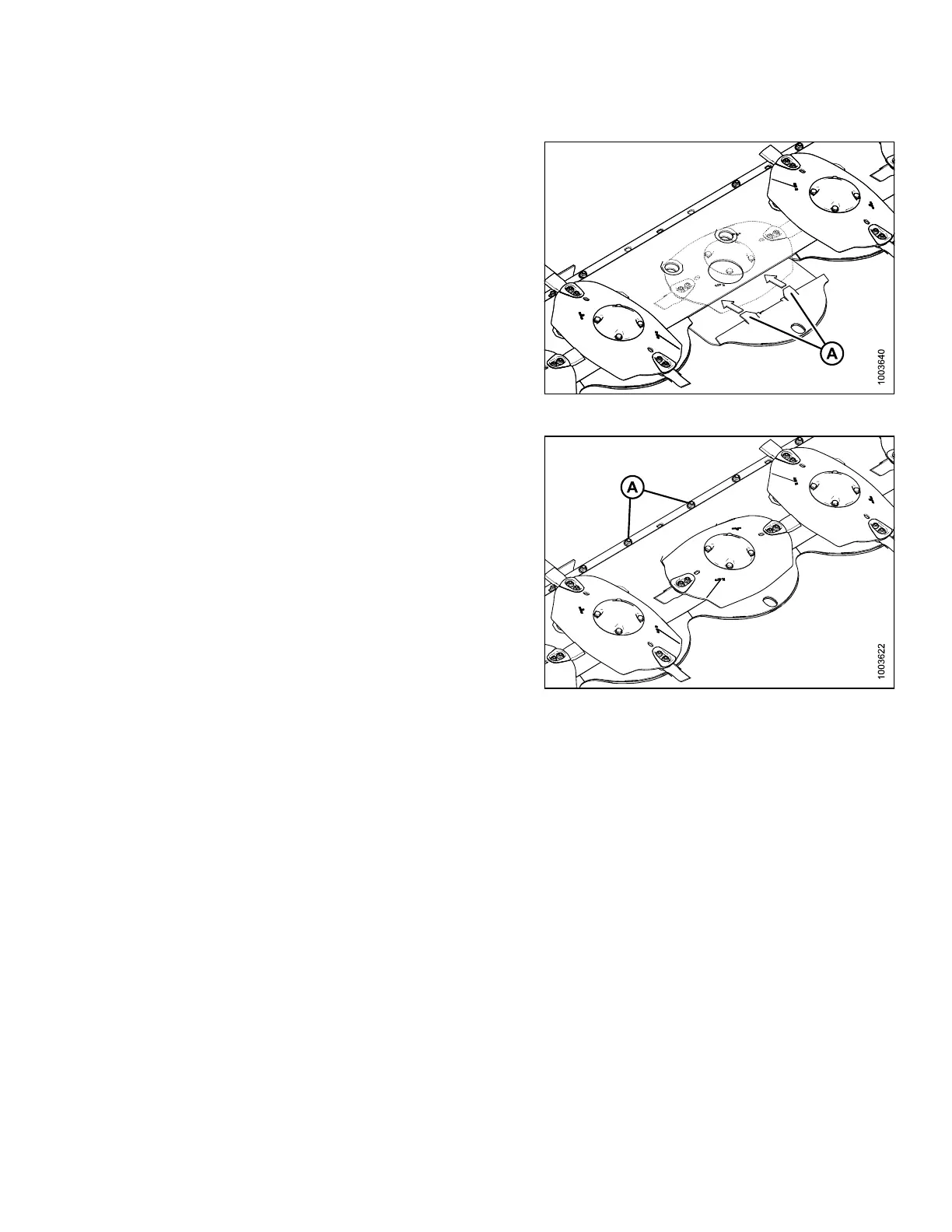

Figure 4.67: Rock Guards
1. Guide rock guard onto cutterbar until tabs (A) sit on top of
the cutterbar and bottom back bolt holes line up.
Figure 4.68: Rock Guards
2. Install two hex head screws, washers, and lock nuts (A).
Torque hardware to 68 Nm (50 lbf·ft).
NOTE:
Lock nuts and washers (A) are installed on top.
MAINTENANCE AND SERVICING
