214880 78 Revision A

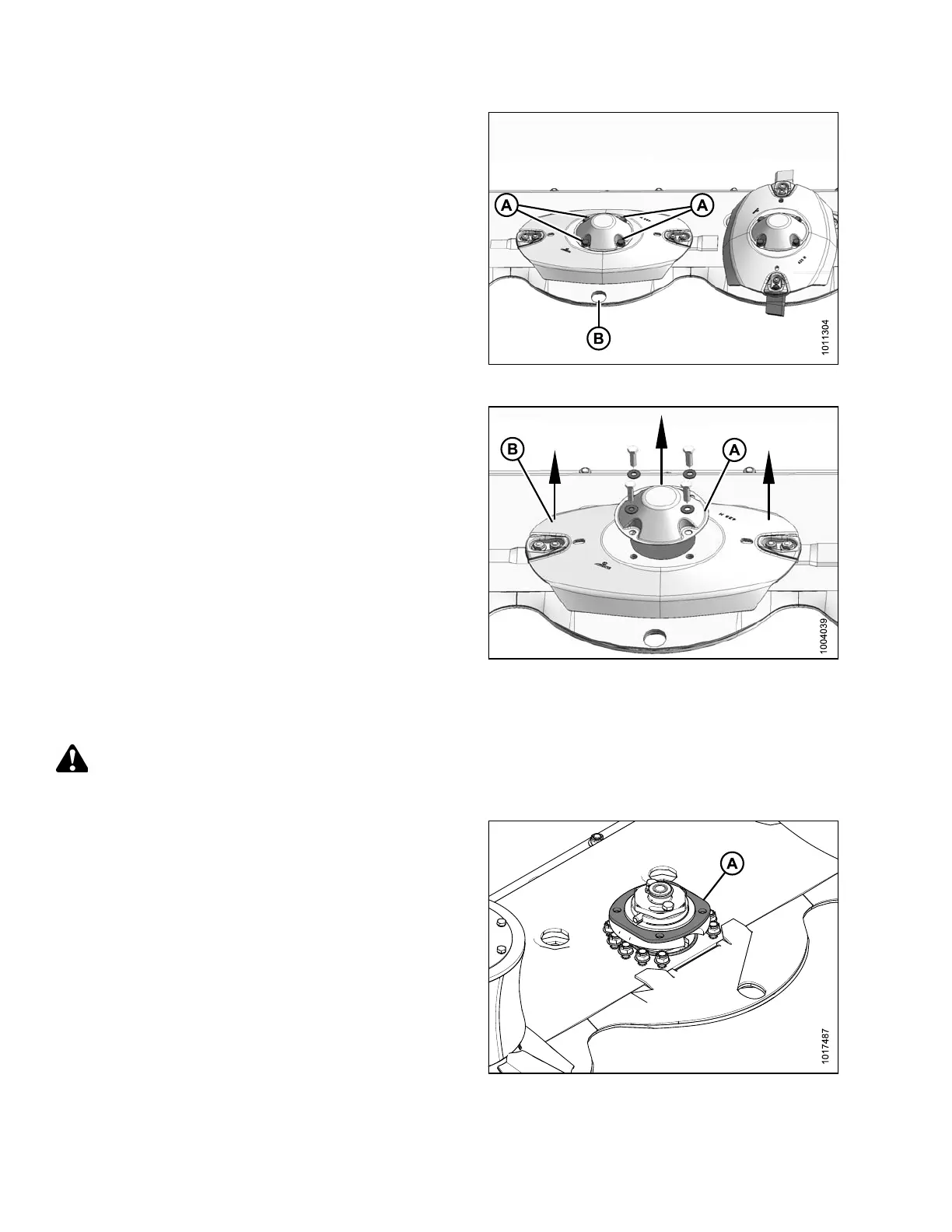

Figure 4.21: Cutterbar Disc Bolts
5. Place a pin (or equivalent) in the front hole of the rock
guard (B) to prevent disc rotation while loosening bolts.
6. Remove four M12 bolts (A) and washers.
Figure 4.22: Cutterbar Disc and Cap
7. Remove cutterbar disc cap (A).
8. Remove cutterbar disc (B).
Installing Cutterbar Discs
WARNING
Exercise caution when working around the blades. Blades are sharp and can cause serious injury. Wear gloves when
handling blades.
Figure 4.23: Disc Spindle
1. Install spacer plate (A) on spindle.
MAINTENANCE AND SERVICING
