214880 135 Revision A

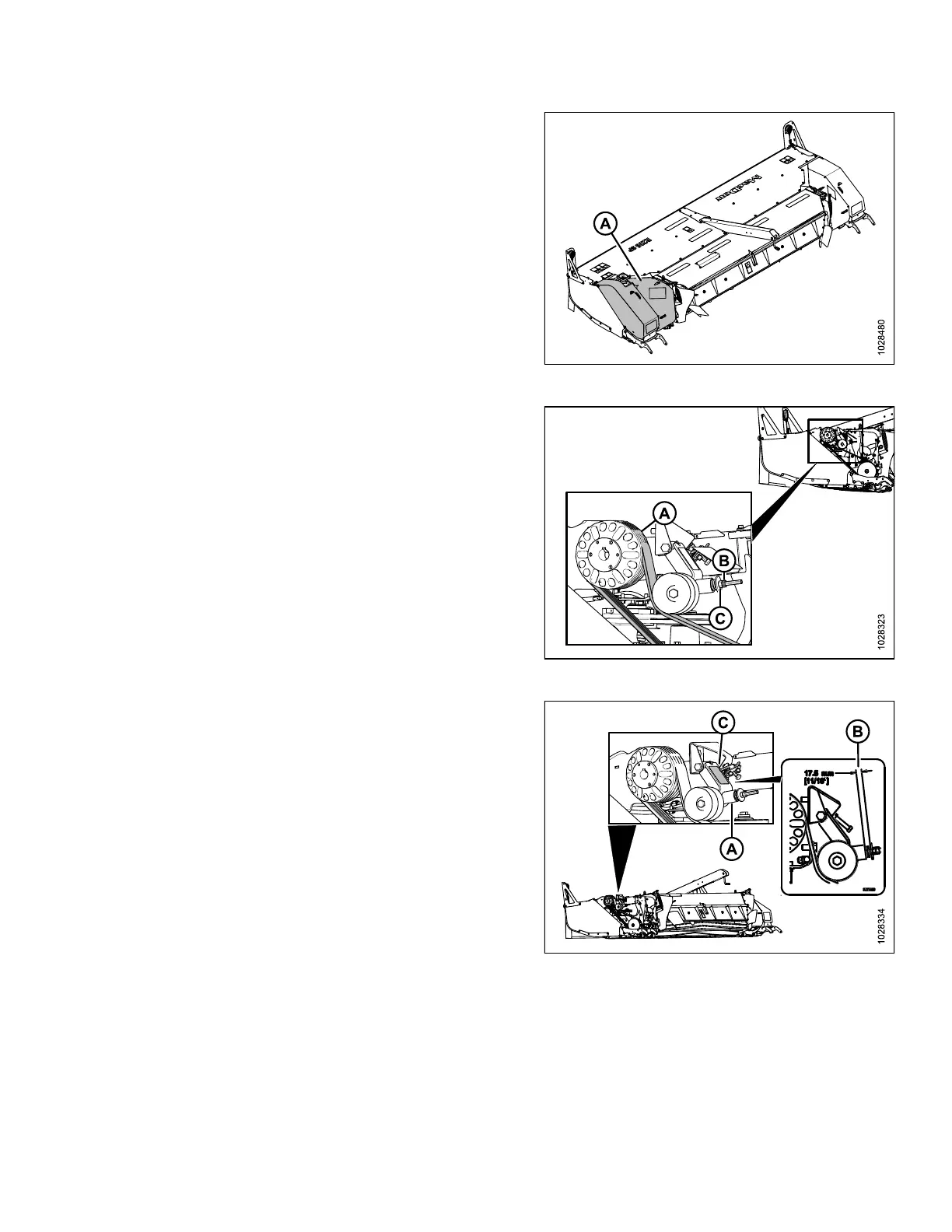

Figure 4.148: Left Driveshield
3. Open left driveshield (A). Refer to 3.6.1 Opening
Driveshields, page 39.
Figure 4.149: Conditioner Drive
4. Inspect drive belt (A) and replace if damaged or cracked.
5. Check that jam nut (B) and adjuster nut (C) are tight.
Figure 4.150: Belt Tension Spring
6. Measure the length of belt tensioner spring (A) and ensure
spring length (B) is 17 mm (11/16 in.) in accordance with
spring tension decal (C). If the spring length requires
adjustment, refer to Installing Conditioner Drive Belt, page
137.
7. Close the driveshield. Refer to 3.6.2 Closing Driveshields,
page 41 .
MAINTENANCE AND SERVICING
