Installing Conditioner Drive Belt
WARNING
To avoid bodily injury or death from unexpected startup of machine, always stop engine and remove key from ignition
before leaving operator’s seat for any reason.
1. Lower the header fully.
2. Shut down the engine, and remove the key from the ignition.

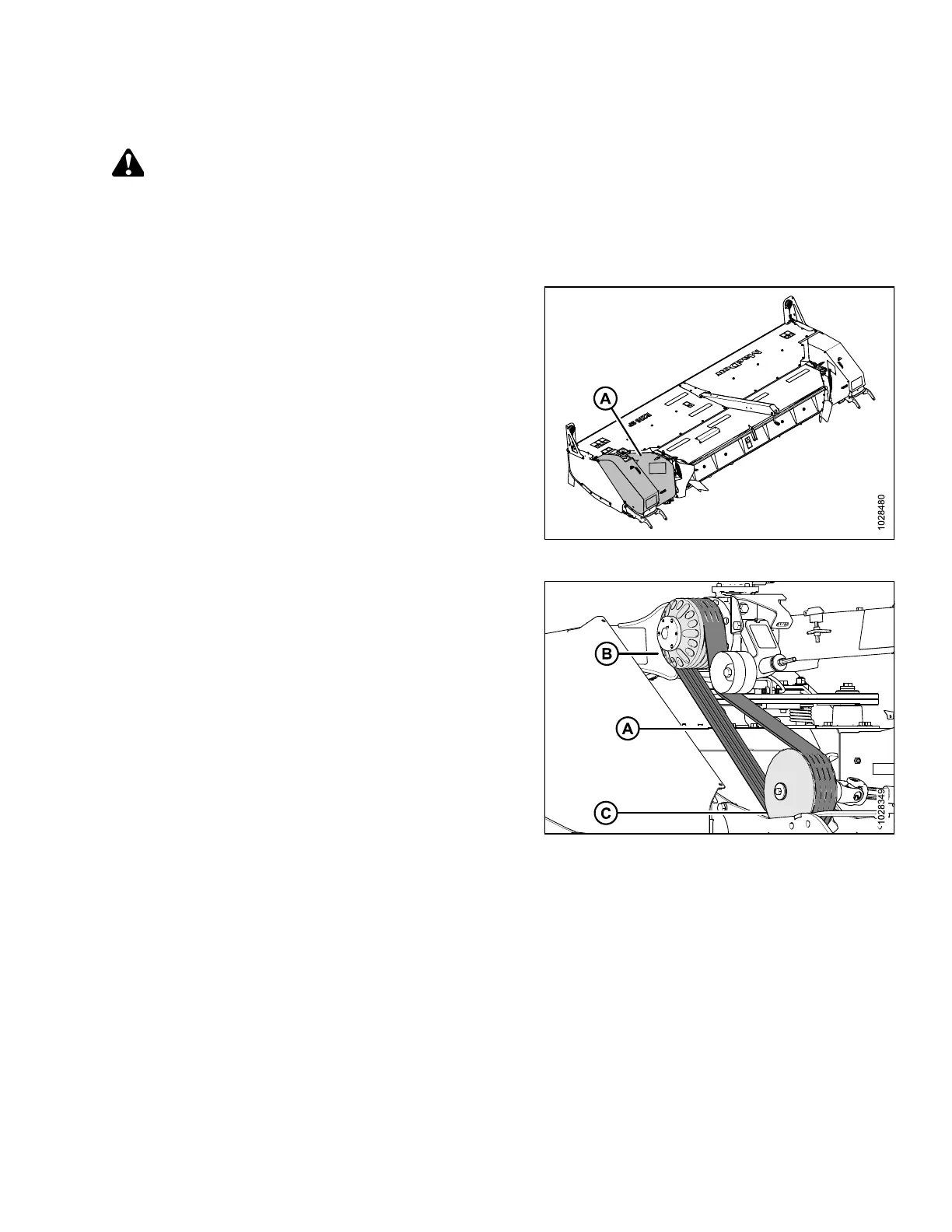

Figure 4.153: Left Driveshield
3. Open left driveshield (A). Refer to 3.6.1 Opening
Driveshields, page 39.
Figure 4.154: Conditioner Drive
4. Install drive belt (A) onto driven pulley (C) first, and then
onto drive pulley (B), ensuring that the belt is in the
pulley grooves.
NOTE:
If necessary, loosen the jam nut and adjuster nut to relieve
the spring tension.
