Removing Conditioner Drive Belt
WARNING
To avoid bodily injury or death from unexpected startup of machine, always stop engine and remove key from ignition
before leaving operator’s seat for any reason.
1. Lower the header fully.
2. Shut down the engine, and remove key from the ignition.
3. Remove the left driveshield. Refer to 3.6.1 Opening Driveshields, page 39.

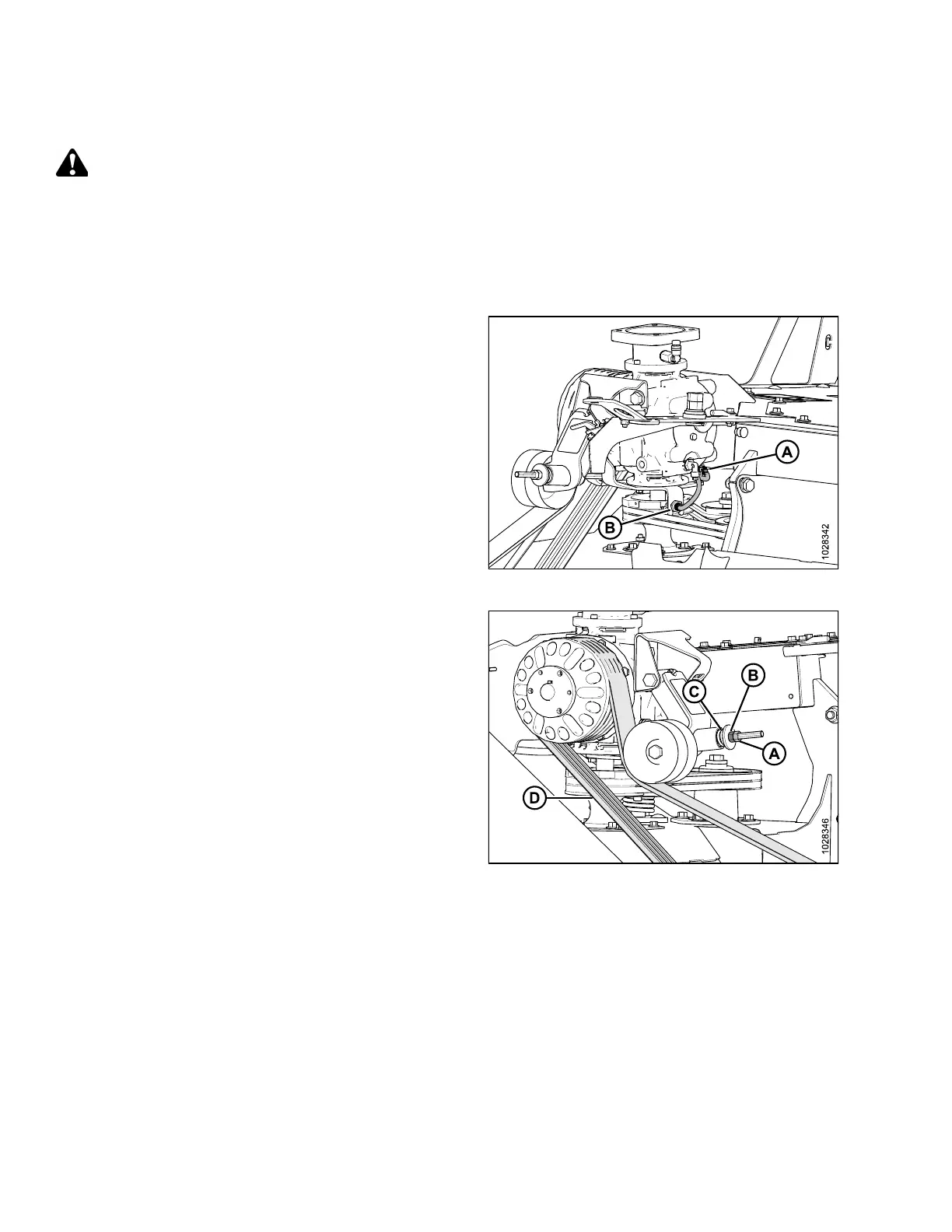

Figure 4.151: Speed Sensor Assembly
4. Disconnect wire harness (A) from speed sensor (B).
Figure 4.152: Conditioner Drive
5. Turn jam nut (A) counterclockwise to unlock the tension
adjustment.
6. Turn jam nut (A) and adjuster nut (B) counterclockwise to
fully collapse tensioner spring (C), and release the tension
from conditioner drive belt (D).
7. Remove drive belt (D).
