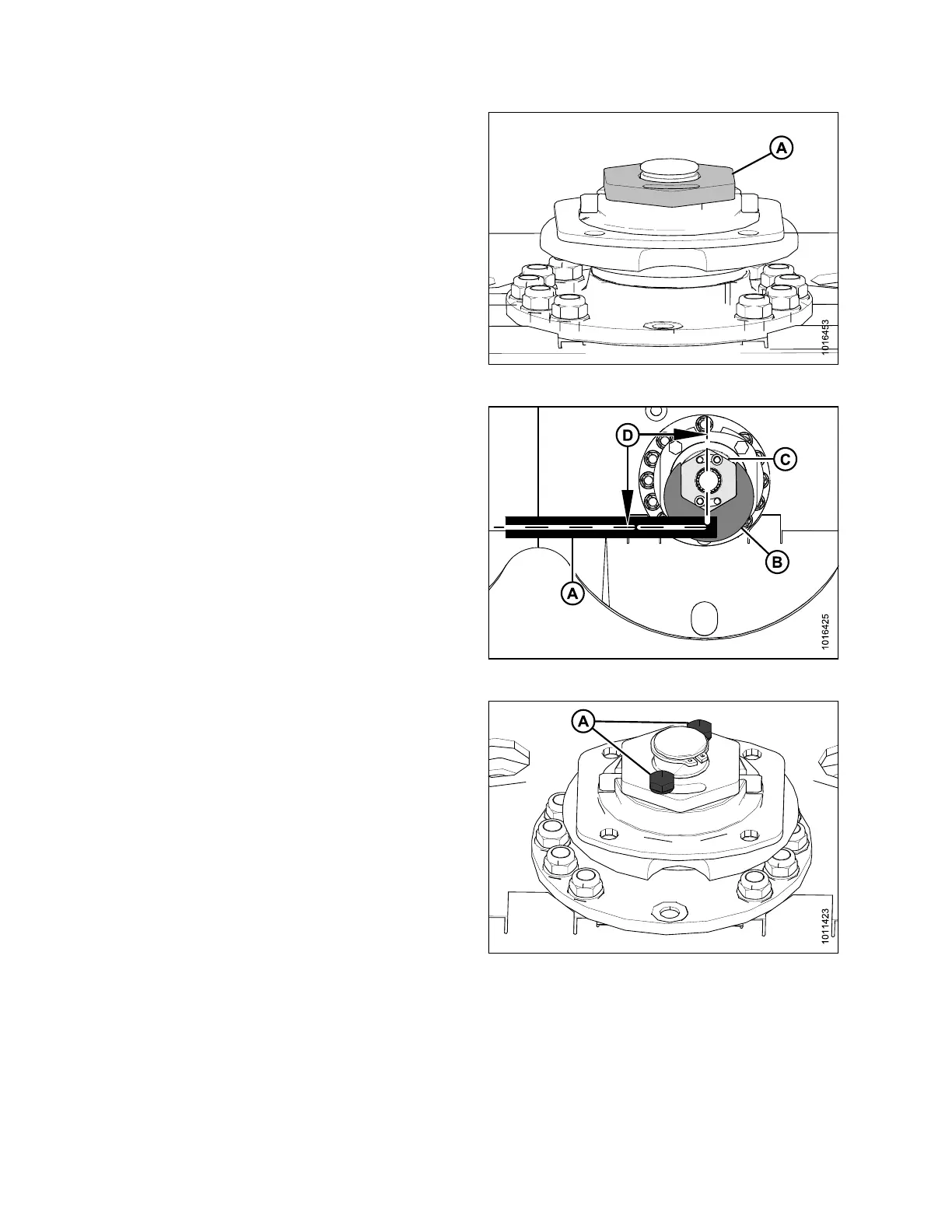

Figure 4.122: Cutterbar Spindle
5. Install nut (A).
Figure 4.123: Spindle Nut
6. Attach the safecut spindle-nut wrench (B) 90 degrees (D) to
the torque wrench (A).
IMPORTANT:
If this is not done, the proper torque will NOT be applied to
the nut.
7. Locate the safecut spindle-nut wrench (B) on spindle
nut (C). Torque nut to 300 Nm (221 lbf·ft).
8. Return safecut spindle-nut wrench to left shield plate.
Figure 4.124: Cutterbar Spindle
9. Inspect the threads of the two M10 bolts (A) and replace if
damaged.
10. Install two M10 bolts (A) and washers. Torque hardware to
55 Nm (40 lbf·ft).
