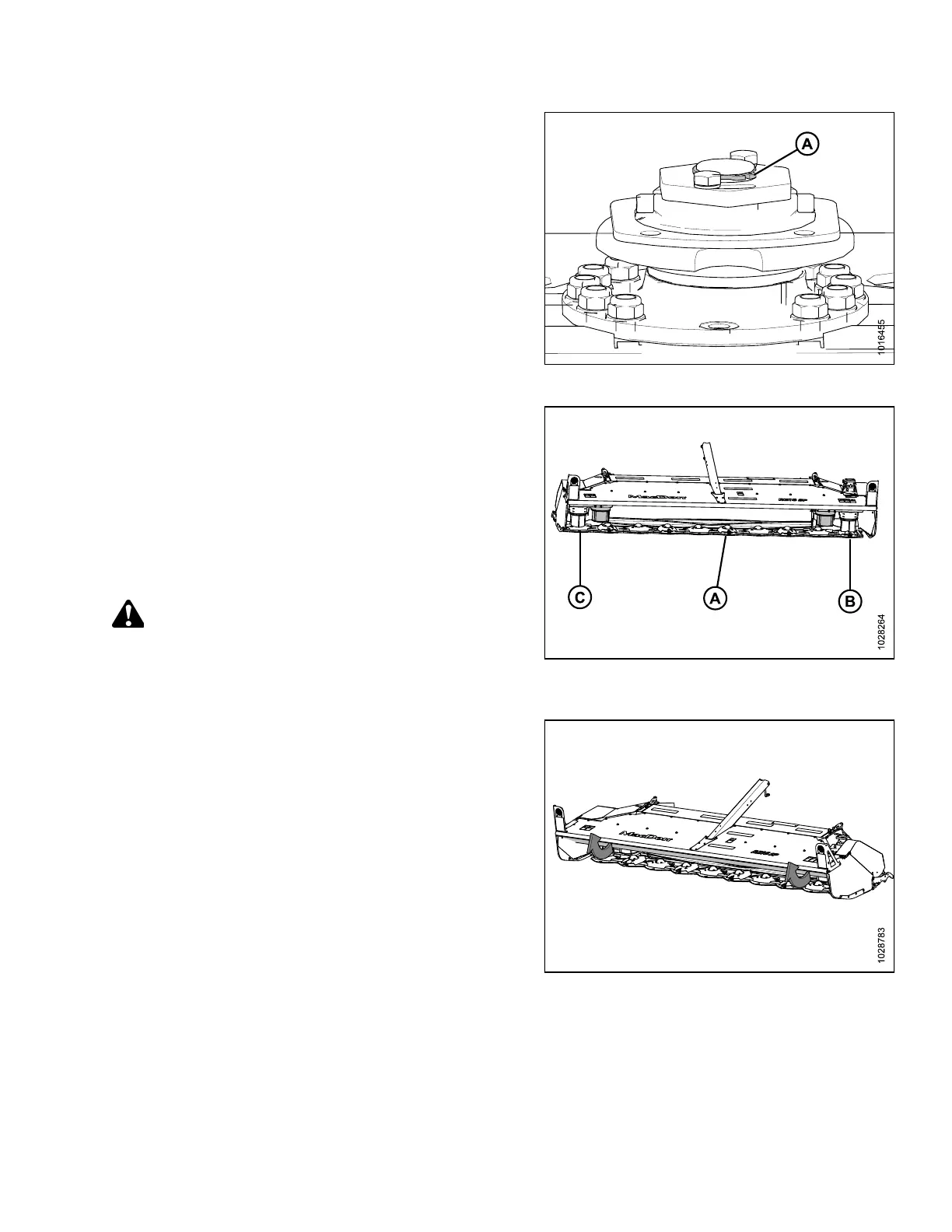

Figure 4.125: Cutterbar Spindle
11. Install retaining ring (A).
Figure 4.126: R216 SP Cutterbar
12. Depending on the type of disc with the new shear pin, refer
to the applicable disc installation procedure:
• Install cutterbar disc (A). Refer to Installing Cutterbar
Discs, page 78.
• Install left driven drum (B). Refer to Installing Left
Driven Drum and Driveline, page 107.
• Install right driven drum (C). Refer to Installing Right
Driven Drum and Driveline, page 113.
WARNING
Ensure cutterbar is completely clear of foreign objects. Foreign
objects can be ejected with considerable force when the
machine is started and may result in serious injury or machine
damage.
Figure 4.127: R216 SP
13. Close cutterbar curtain (A). Refer to 3.7.2 Closing Cutterbar
Curtain, page 43.
