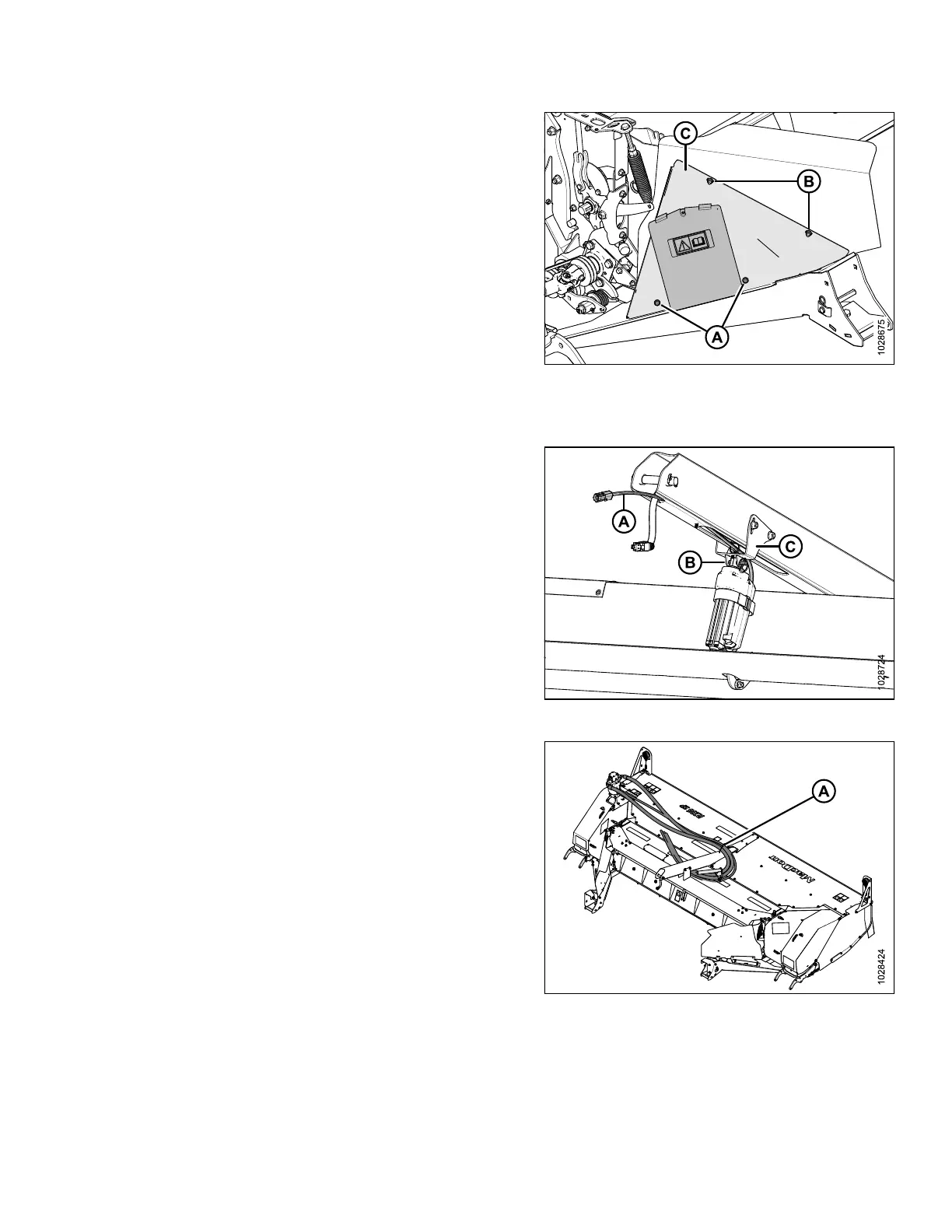

Figure 4.175: Fixed Deflector Support – Left Side
of Header
15. Position the fixed deflector support (C) onto the header
support deflector as shown, and install two M10 short
square neck carriage head bolts (B). Bolt heads face
inboard.
16. Apply medium-strength threadlocker (Loctite® 243 or
equivalent) to the threads of two M10 hex flange bolts (A),
and install M10 bolts (A) as shown to secure the fixed
deflector support to the header support.
NOTE:
Ensure header support deflector in Figure 4.174, page 144
is flush with inboard side of header support once fixed
deflector support is installed.
17. Torque bolts (A) and (B) to 53 Nm (39 lbf∙ft).
18. Repeat Steps 13, page 144 to 17, page 145 at the opposite
side of the header.
Figure 4.176: Linear Actuator
19. If remote baffle kit is installed, connect linear actuator
harness (A) to main harness and secure linear actuator to
clevis support (C) with clevis pin (B) and lynch pin,
otherwise proceed to Step 20, page 145.
Figure 4.177: M1 Series Hose Bundle
20. Reposition hose bundle (A) on the frame.
21. Install the driveshields. Refer to 4.10.2 Installing
Driveshields, page 147.
