214880 37 Revision A

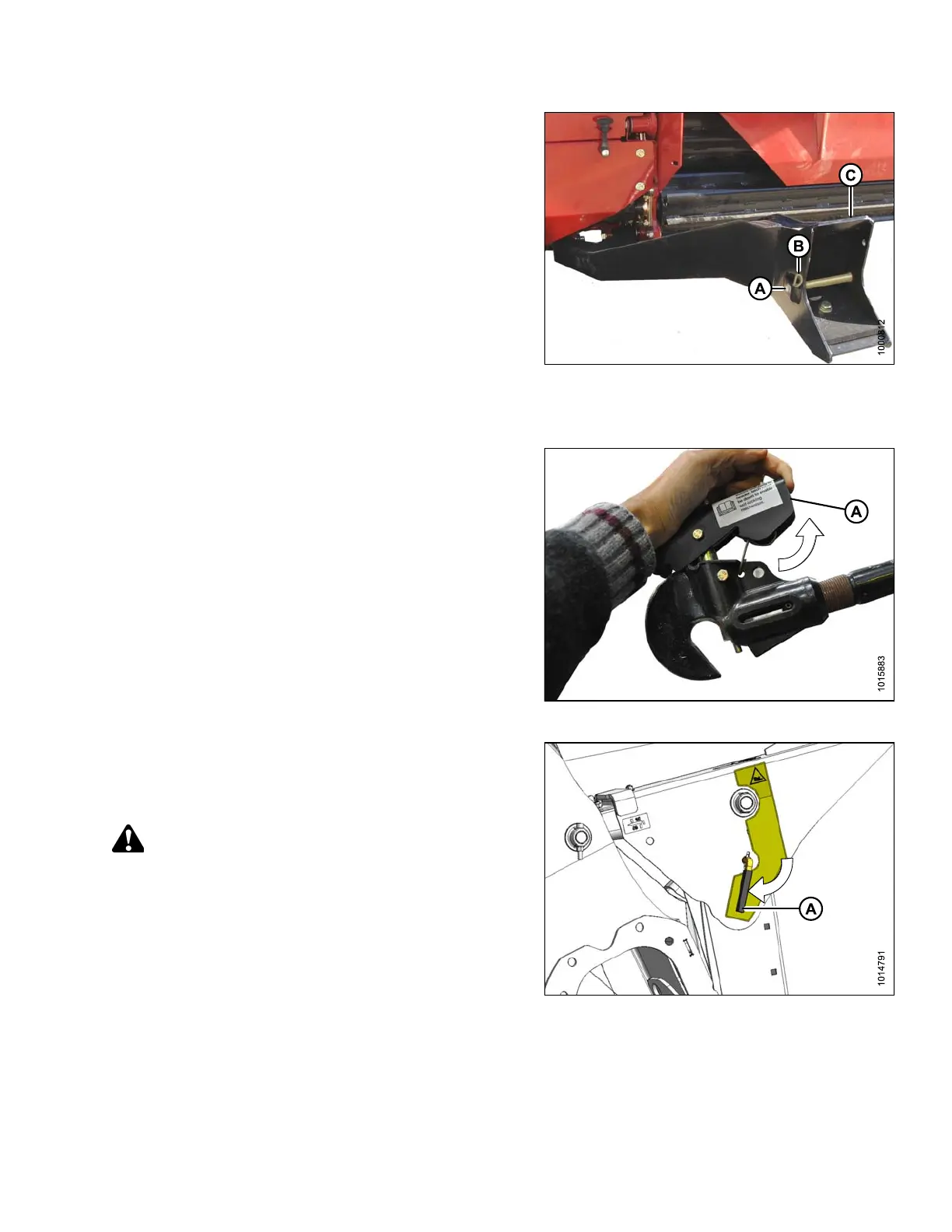

Figure 3.36: Header Supports
7. Remove hairpin (B) from clevis pin (A). Remove clevis pin
from header support (C) on both sides of header.
Windrowers with self-aligning center-link kit only:
Figure 3.37: Center-Link
8. Release the center-link latch (A) before returning to
the cab.
Figure 3.38: Safety Props
9. Disengage safety prop by turning lever (A) downwards until
lever locks into the vertical position.
10. Repeat for the opposite side.
CAUTION
Check to be sure all bystanders have cleared the area.
11. Start engine and remove header float when prompted by the Harvest Performance Tracker (HPT).
NOTE:
If not prompted by the HPT to remove float, remove float manually.
12. Lower header to the ground.
OPERATION
