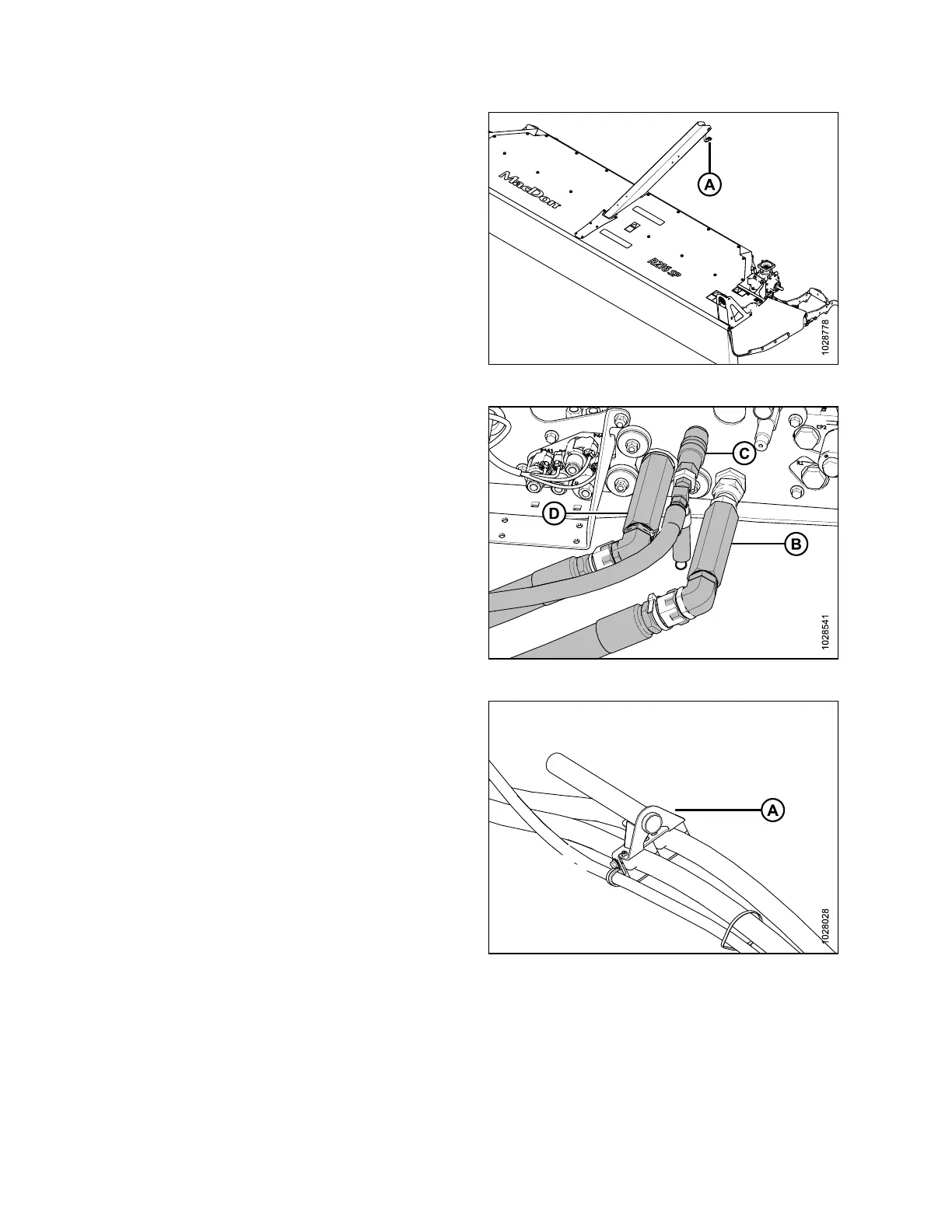

Figure 3.33: Header Electrical Connection
Figure 3.34: Header Drive Hydraulics
5. Disconnect electrical harness (A) and hydraulic hoses (B),
(C), and (D) from the windrower.
Figure 3.35: Hoses on Windrower
6. Remove hose support (A) and hose bundle from
windrower frame.
