MacDon R216 SP - Page 48

214880 40 Revision A

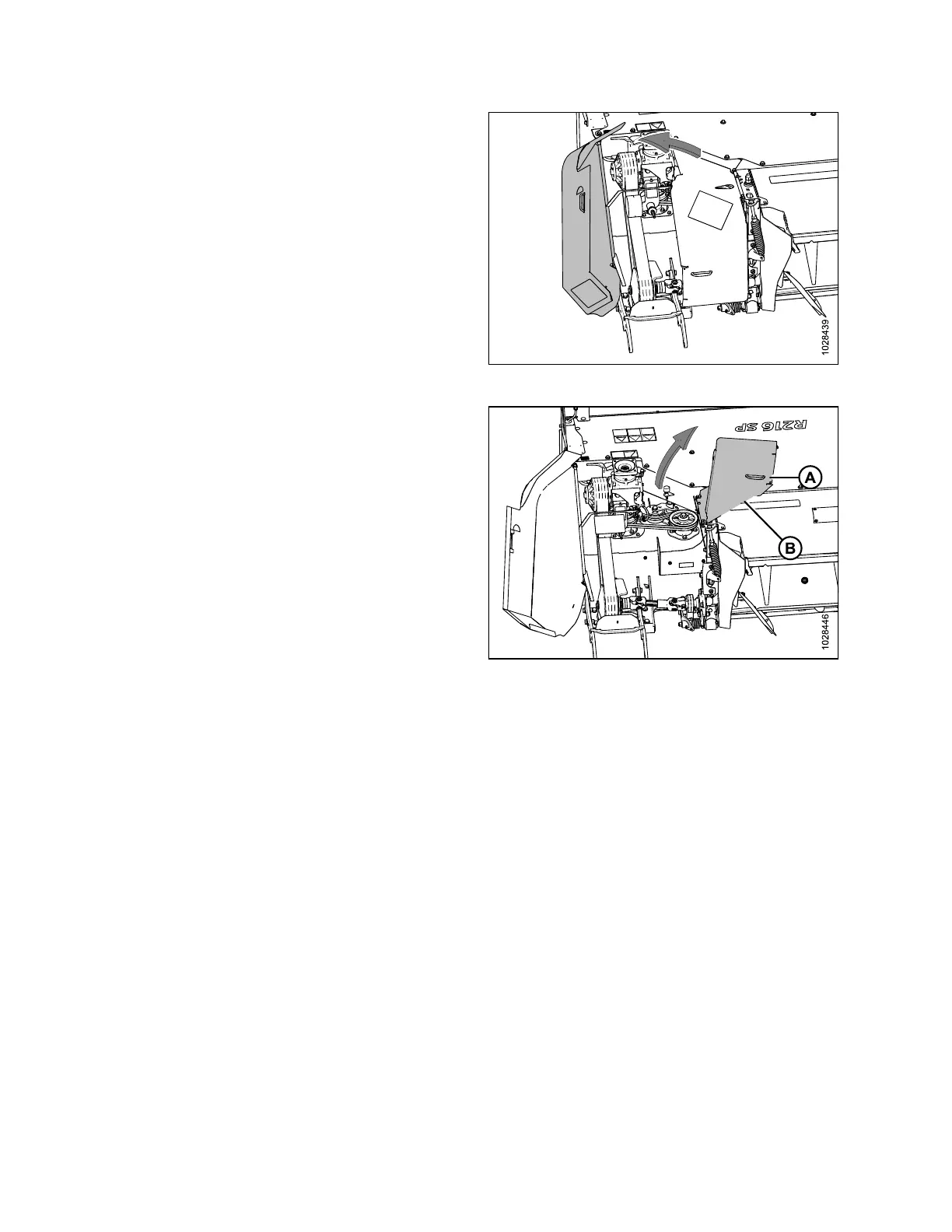

Figure 3.44: Opening Driveshield – Outboard Side
2. Lift outboard driveshield panel toward outboard end of
header.
Figure 3.45: Driveshield – Inboard Side
3. Grab handle (A) and lift the other half of the endshield (B)
to the inboard side of the header.
OPERATION
