214880 33 Revision A

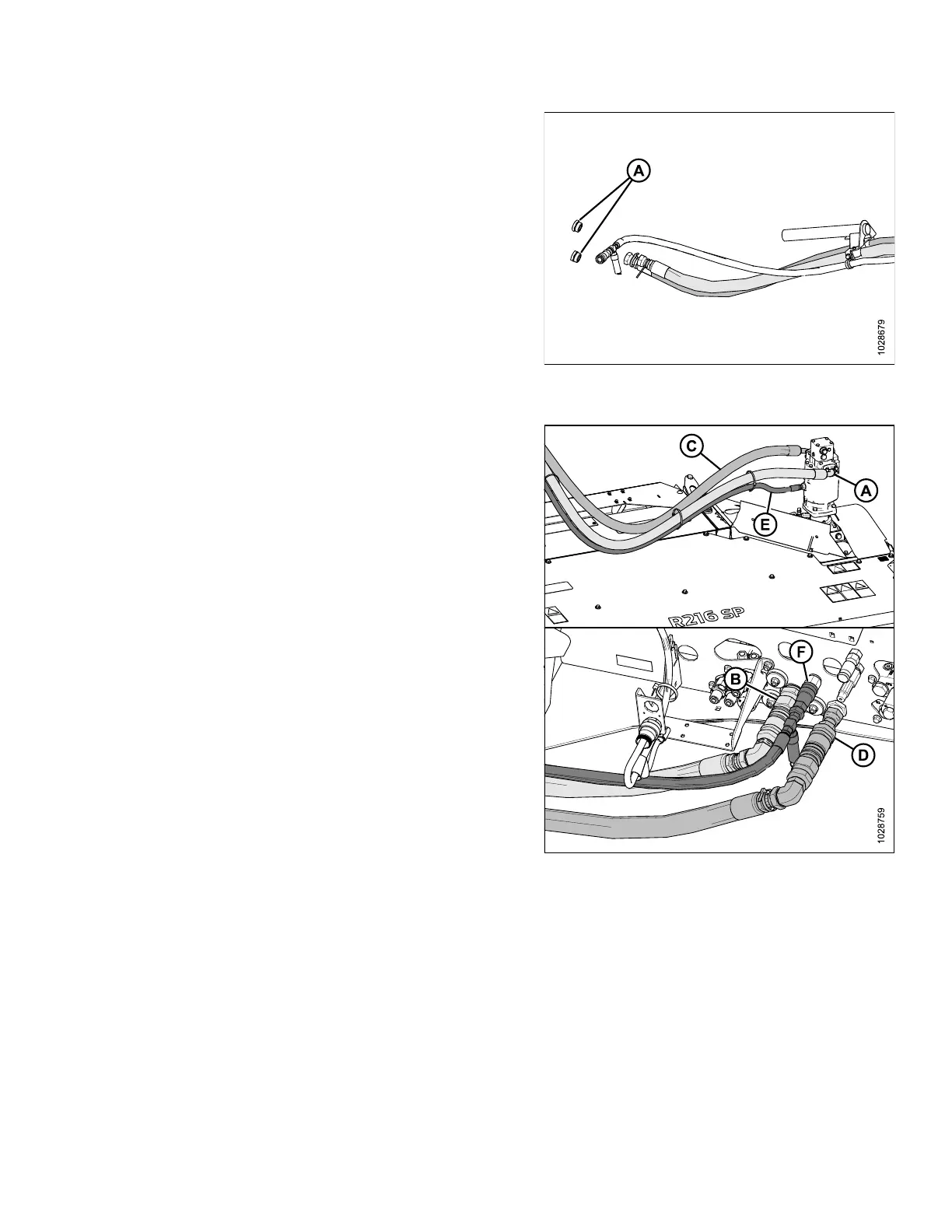

Figure 3.28: Protective Shipping Plugs on R216
Hydraulic Hoses
2. Remove protective plugs (A) from the ends of the
hydraulic hoses.
Figure 3.29: Hydraulic Connections on Rotary Disc
Header and M1240 Windrower
3. Use a clean rag to remove dirt and moisture from the
couplers on the left side of the windrower frame.
4. Make the following hydraulic and electrical connections to
the windrower:
a. Connect disc pressure hose (A) with coupler (B) and
torque to 205–226 Nm (151–167 lbf·ft)
b. Connect disc return hose (C) with coupler (D) and
torque to 205–226 Nm (151–167 lbf·ft)
c. Connect case drain hose (E) to fitting (F), with relief
valve pointing towards the ground
NOTE:
Parts removed from illustration for clarity.
OPERATION
