WARNING
Exercise caution when working around the blades. Blades are sharp and can cause serious injury. Wear gloves when
handling blades.

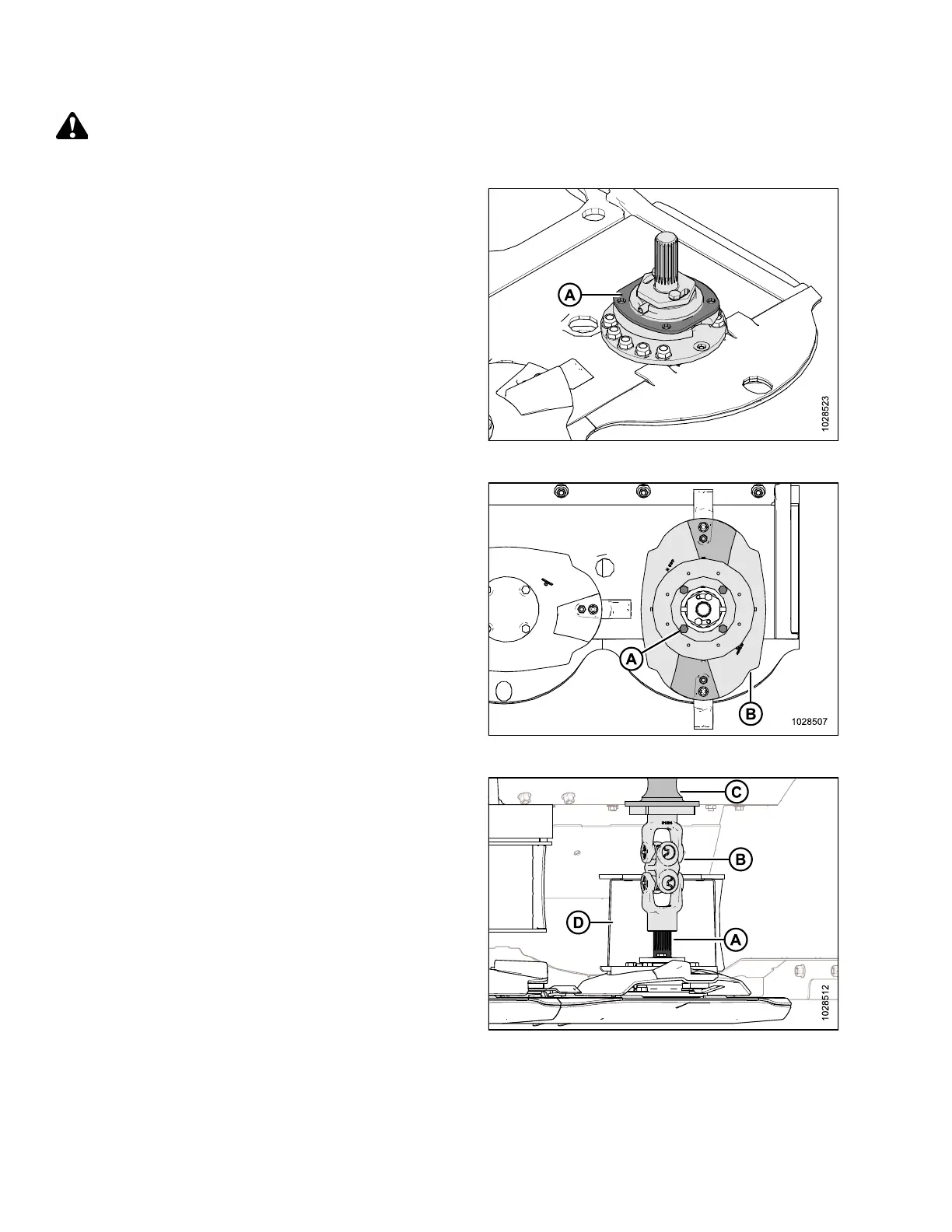

Figure 4.89: Driven Spindle
1. Ensure spacer (A) is on spindle.
Figure 4.90: Driven Drum – View from Above
2. Position the drum disc assembly (B) as shown.
3. Use a 18 mm deep socket to install four M12 bolts (A) and
washers that hold the drum disc in place. Torque hardware
to 85 Nm (63 lbf·ft).
Figure 4.91: Drum and Tube Shield – Cutaway View
4. Lightly lubricate spindle splines (A). For specifications, refer
to the inside back cover of this manual.
5. Insert driveline (B) at an angle and guide it past hub
drive (C) and drum (D).
6. Insert splined spindle end (A) into splined bore of
driveline (B).
