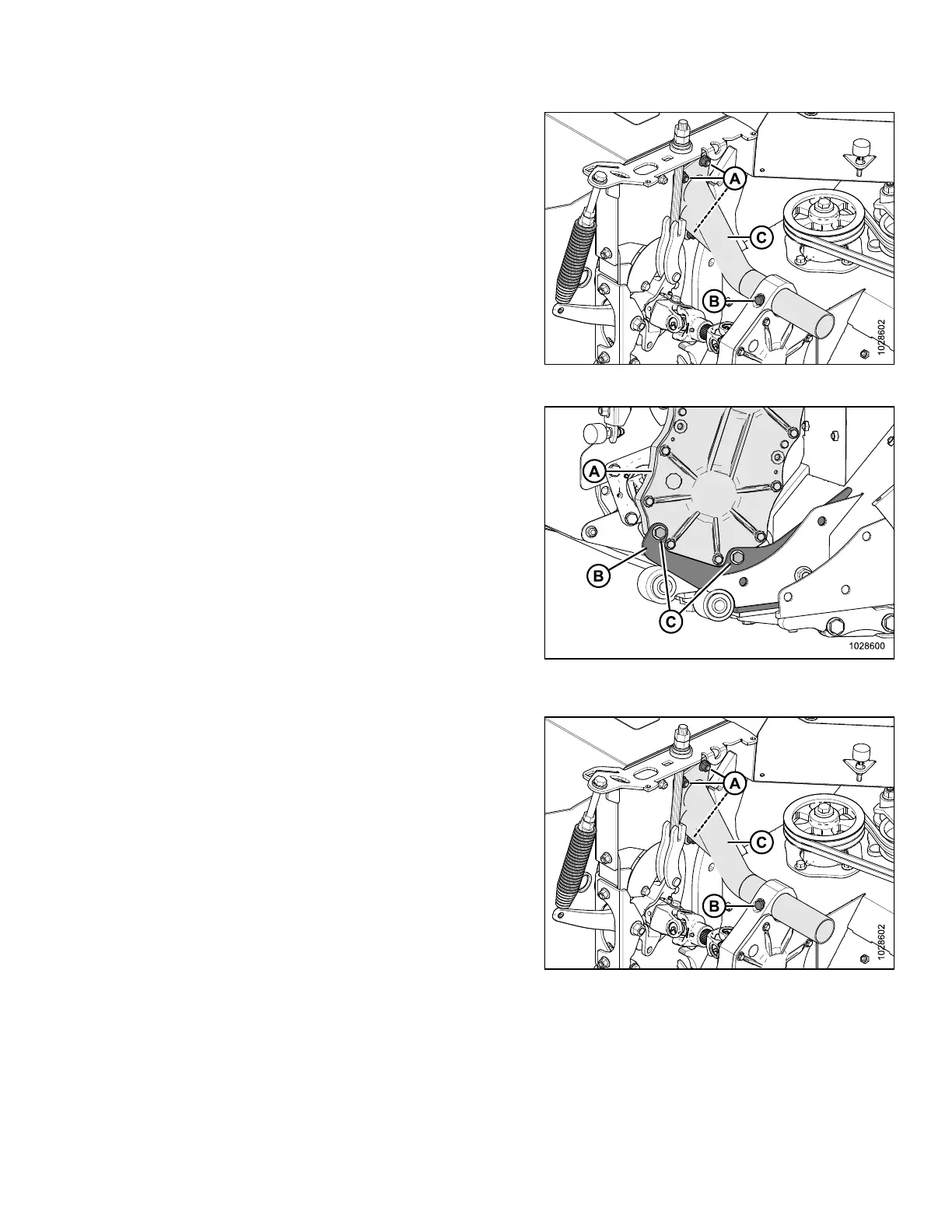

Figure 4.169: Conditioner Gearbox Support
5. Loosen bolts (A) and (B) on gearbox support (C). Do NOT
remove hardware.
Figure 4.170: Conditioner Gearbox
6. Align the holes in the conditioner gearbox (A) with the
mounting holes in the header frame (B). Apply high-
strength threadlocker (Loctite® 262 or equivalent) on two
M12 hex head bolts (C), and install bolts and washers to
secure conditioner gearbox (A) to the header.
7. Torque bolts to 139 Nm (103 lbf·ft).
Figure 4.171: Conditioner Gearbox Support
8. Tighten bolts (A) and (B) on gearbox support (C).
MAINTENANCE AND SERVICING
