214880 148 Revision A

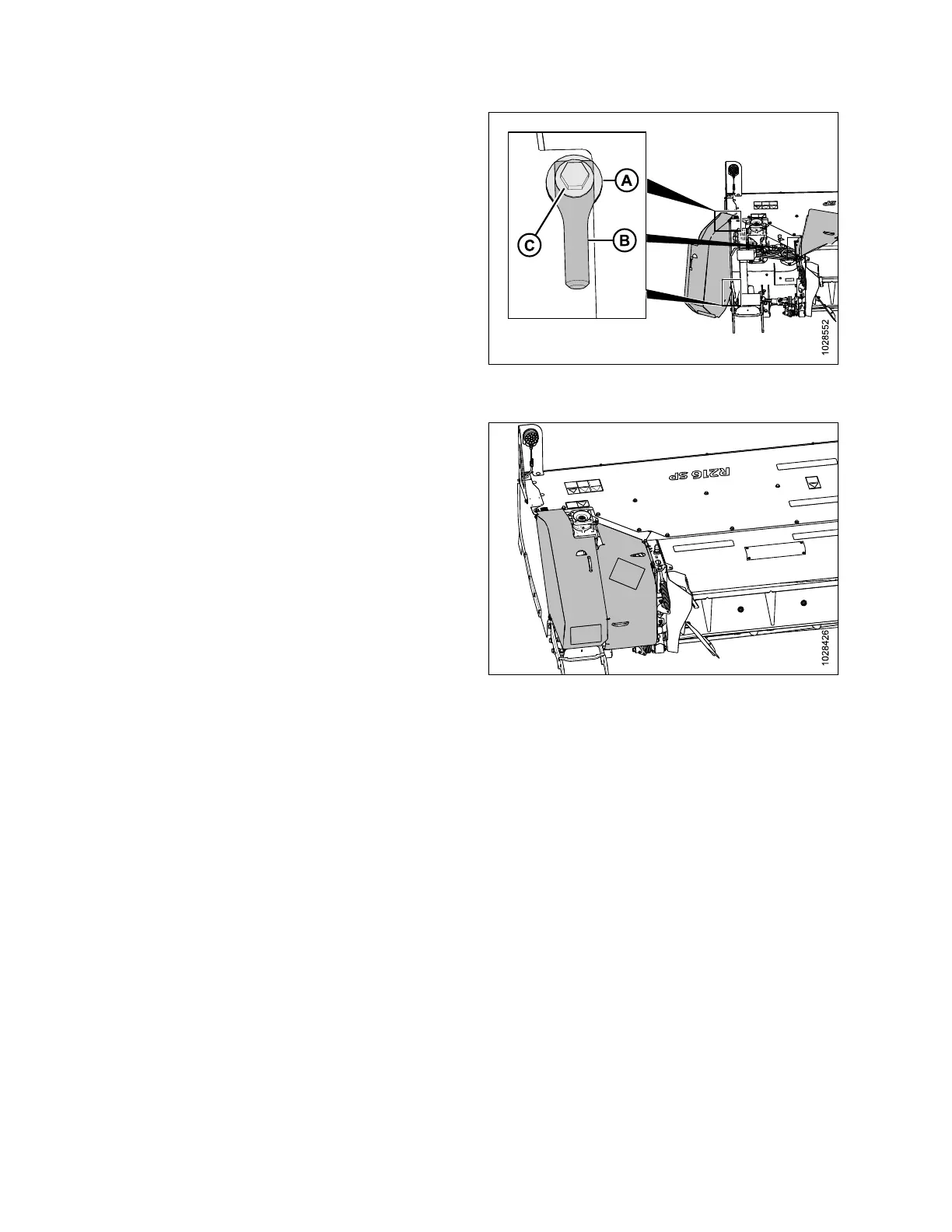

Figure 4.182: Retaining Pins and Hardware on
Driveshield
2. Secure top and bottom of inboard and outboard
driveshields with washer (A), retaining pin (B), and bolt (C).
Figure 4.183: Left Driveshield
3. Close driveshields. Refer to 3.6.2 Closing Driveshields, page
41.
MAINTENANCE AND SERVICING
