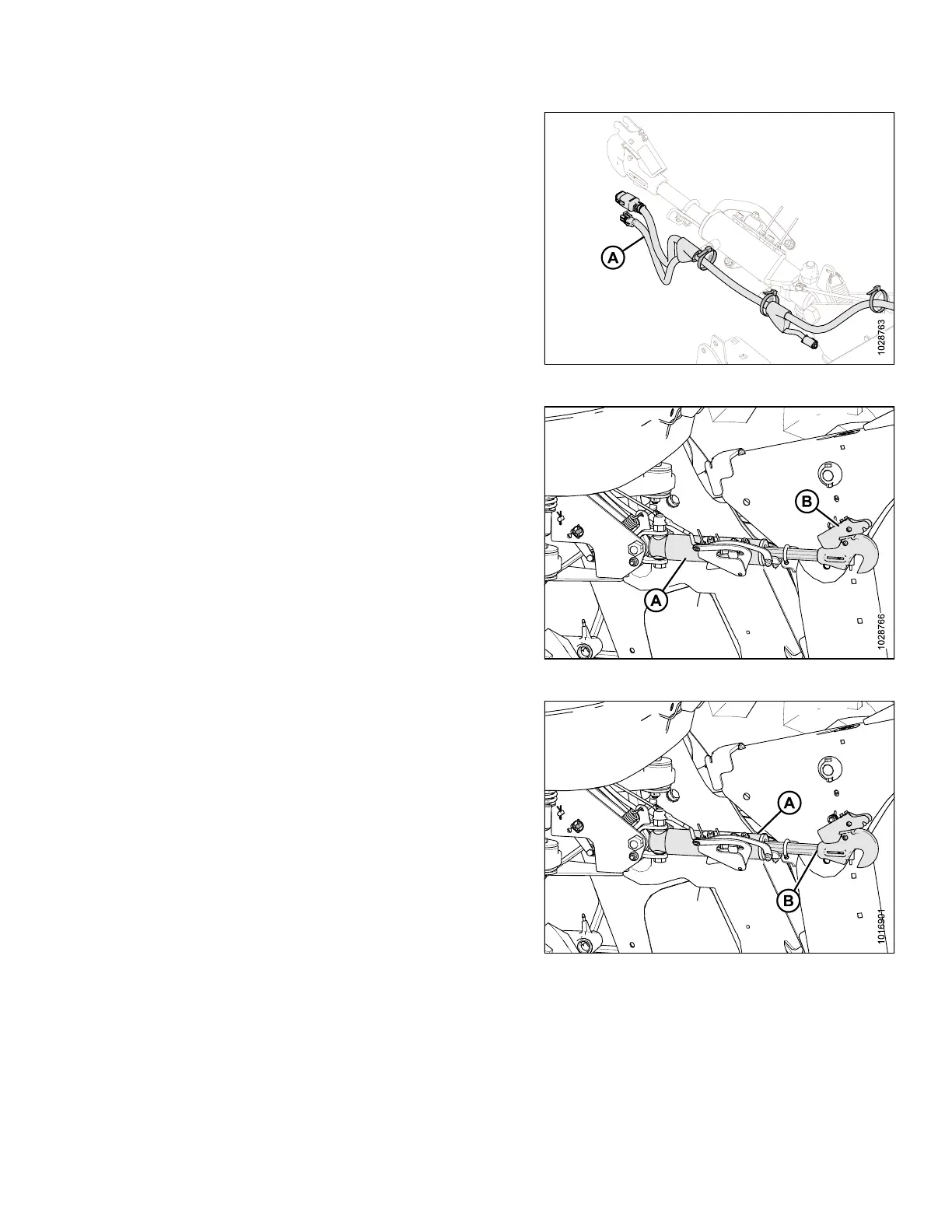

Figure 3.15: Header Electrical Harness
11. Self-Aligning Hydraulic Center-Link: Connect header
electrical harness (A) to windrower.
Figure 3.16: Hydraulic Center-Link
12. Self-Aligning Hydraulic Center-Link:
a. Lower center-link (A) onto the header with REEL DOWN
switch on the GSL until the center-link locks into
position and the hook release (B) is down.
b. Check that center-link is locked onto header by
pressing the REEL UP switch on the GSL.
Figure 3.17: Hydraulic Center-Link
13. Hydraulic Center-Link without Self-Alignment:
a. Press HEADER TILT UP or HEADER TILT DOWN cylinder
switches on the GSL to extend or retract center-link
cylinder until the hook is aligned with the header
attachment pin.
b. Stop the engine and remove the key.
c. Push down on rod end of link cylinder (B) until hook
engages and locks onto header pin.
IMPORTANT:
Hook release must be down to enable self-locking
mechanism. If the hook release is open (up), manually
push it down after hook engages pin.
d. Check that center-link (A) is locked onto header by
pulling upward on rod end (B) of cylinder.
