CAUTION
Before starting the machine, check to be sure all bystanders have cleared the area.
15. Start the engine and raise the header fully.
16. Shut down the engine, and remove the key from the ignition. Engage the windrower lift cylinder safety props.
17. Remove the block from under the header.
18. Disengage the windrower lift cylinder safety props.
CAUTION
Before starting the machine, check to be sure all bystanders have cleared the area.
19. Start the engine and lower the header to a level position on the ground.
20. Shut down the engine, and remove the key from the ignition.
21. Recheck the oil level.

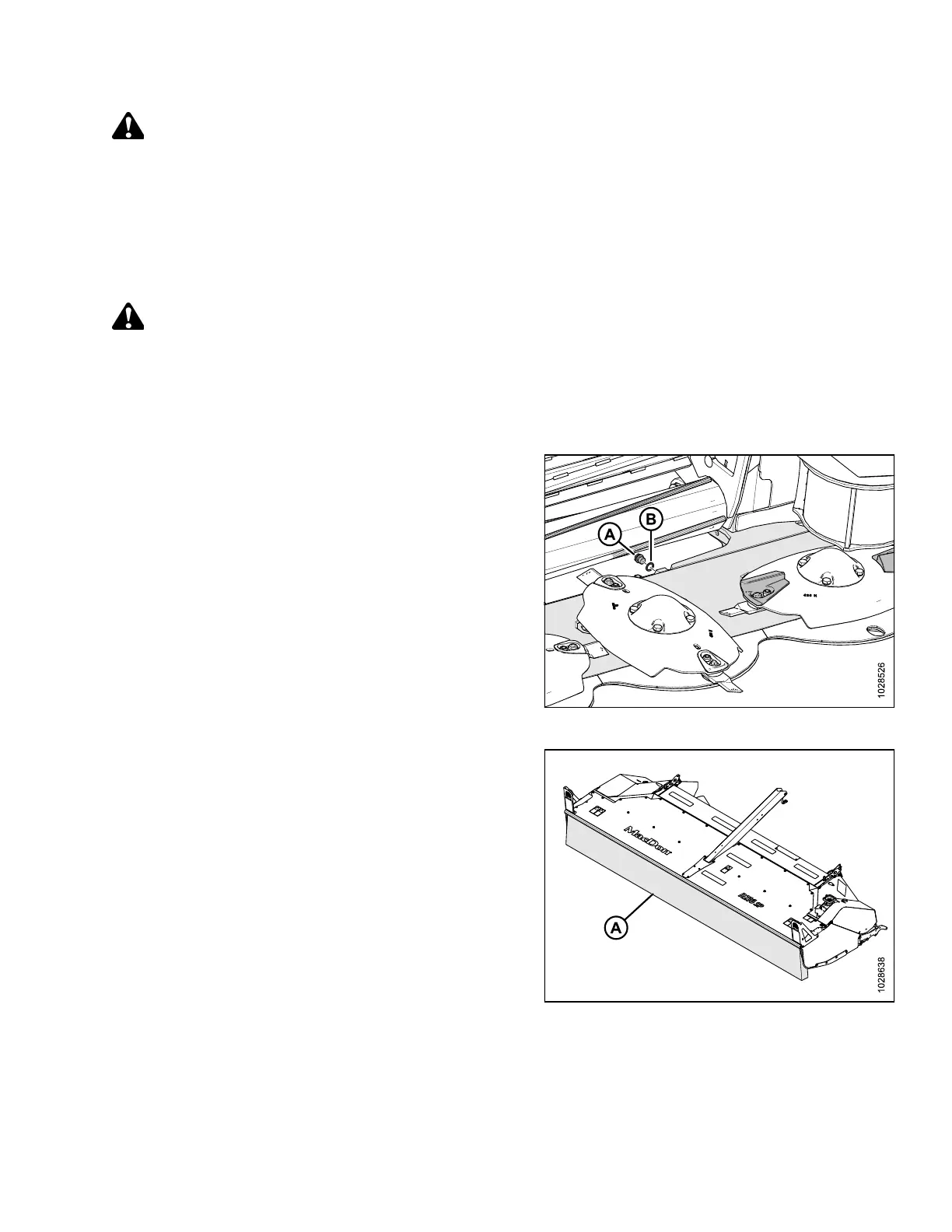

Figure 4.13: Cutterbar Oil Inspection Plug
22. Check O-ring (B) for breaks or cracks, and replace if
necessary.
23. Install plug (A) and O-ring (B). Tighten securely.
Figure 4.14: Cutterbar Curtain
24. Close cutterbar curtain (A). Refer to 3.7.2 Closing Cutterbar
Curtain, page 43.
