214880 82 Revision A

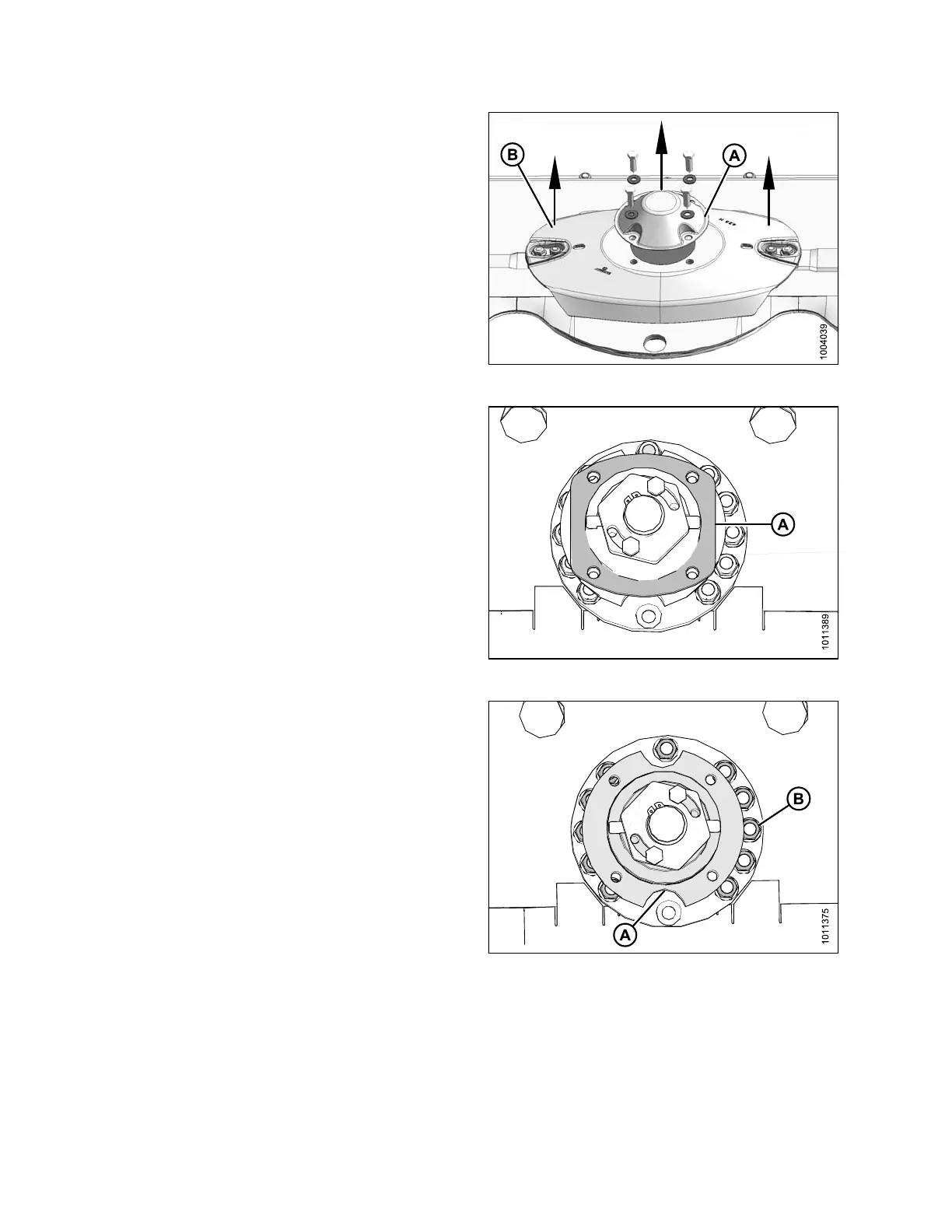

Figure 4.30: Cutterbar Disc and Cap
8. Remove cutterbar disc cap (A).
9. Remove cutterbar disc (B).
IMPORTANT:
Blades are rotation specific. Switch entire disc when
swapping spindles.
Figure 4.31: Spacer Plate
10. Remove spacer plate (A).
NOTE:
The area around the spacer plate must be cleaned
thoroughly to prevent debris from entering into the
cutterbar gearbox.
Figure 4.32: Left Spindle Hub and Hardware
11. Rotate spindle hub (A) to access nuts, and remove eleven
M12 lock nuts (B) and washers.
MAINTENANCE AND SERVICING
