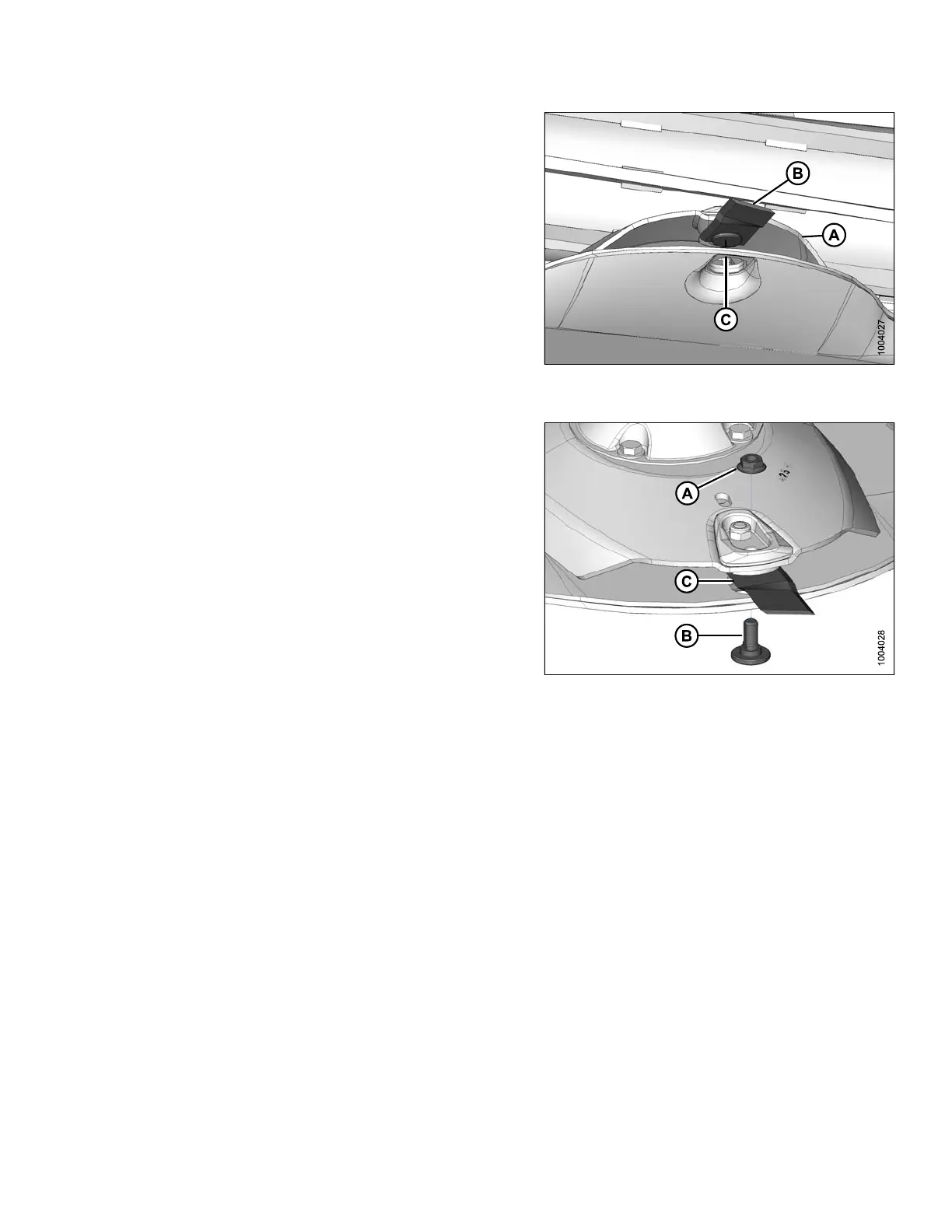

Figure 4.50: Discblade Aligned with Hole in
Rock Guard
4. Rotate disc (A) so blade (B) faces forward and lines up with
hole (C) in rock guard.
Figure 4.51: Discblade
5. Place a pin (or equivalent) in the front hole of the
neighboring rock guard to prevent disc rotation while
loosening blade bolts.
6. Clean debris from blade attachment area.
7. Remove nut (A) and discard.
IMPORTANT:
Nuts are one-time-use only. When flipping or changing a
blade, replace using a NEW nut only.
8. Remove shoulder bolt (B) and blade (C).
